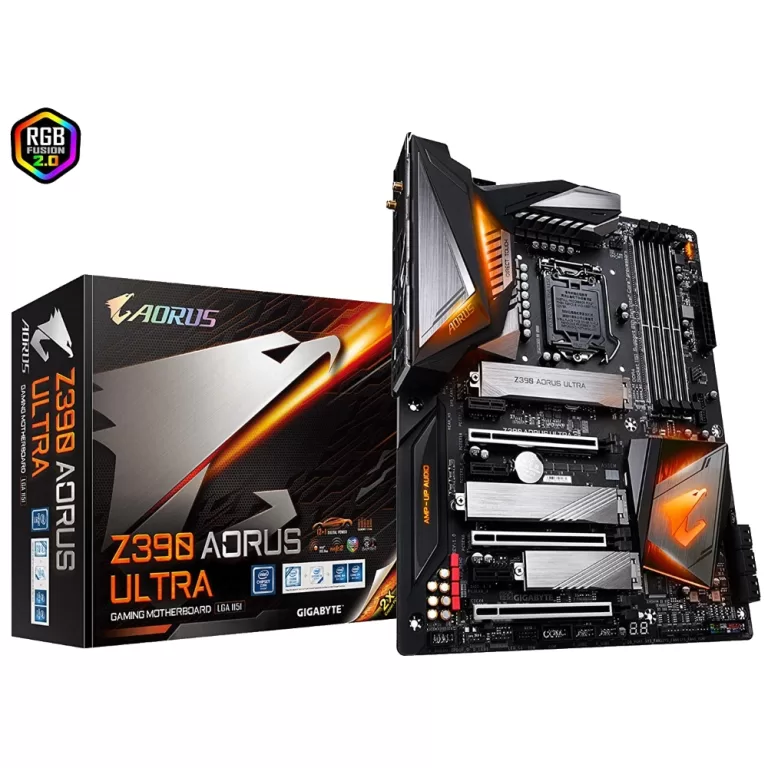

Mainboard Gigabyte Z390 AORUS Ultra
Liên hệ báo giáXin vui lòng Zalo: 0984 104 265 để cập nhật giá mới nhất!
- Ram hỗ trợ: 4 Khe ram DDR4 4400/ 4333/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300/ 3200/ 3000/ 2800==>Over lock. 2666 / 2400 / 2133 MHz.
- Kiểu Sockets Supported: Hỗ trợ CPU đời 8, 9 Socket 1151
L3 cache varies with CPU - Chipset: Intel® Z390 Express Chipset
- Chuẩn RAM: supporting up to 128GB (32GB single DIMM capacity)
Mô tả
Thông số sản phẩm
Bảo hành | 36 tháng |
Ram hỗ trợ | 4 Khe ram DDR4 4400/ 4333/ 4133/ 4000/ 3866/ 3800/ 3733/ 3666/ 3600/ 3466/ 3400/ 3333/ 3300/ 3200/ 3000/ 2800==>Over lock. 2666 / 2400 / 2133 MHz. |
Kiểu Sockets Supported | Hỗ trợ CPU đời 8, 9 Socket 1151 L3 cache varies with CPU |
Chipset | Intel® Z390 Express Chipset |
khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) |
LAN – WiF | Intel® GbE LAN chip (10/100/1000 Mbit) Wifi Intel® CNVi interface Wi-Fi 802.11a/b/g/n/ac, BLUETOOTH 5 |
Âm thanh | Realtek® ALC1220-VB codec High Definition Audio |
Operating System Support | Support for Windows 10 64-bit |
Cổng I / O phía sau | 1 x HDMI port 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 3 x USB 3.1 Gen 2 Type-A ports (red) 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks |
Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 2 x temperature sensor headers |
Chuẩn thiết kế ATX | ATX Form Factor; 30.5cm x 24.4cm |
Cổng lưu trữ / kết nối | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel® Optane™ Memory Ready |
Chuẩn RAM | supporting up to 128GB (32GB single DIMM capacity) |
Đồ họa | 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz Maximum shared memory of 1GB Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies |
