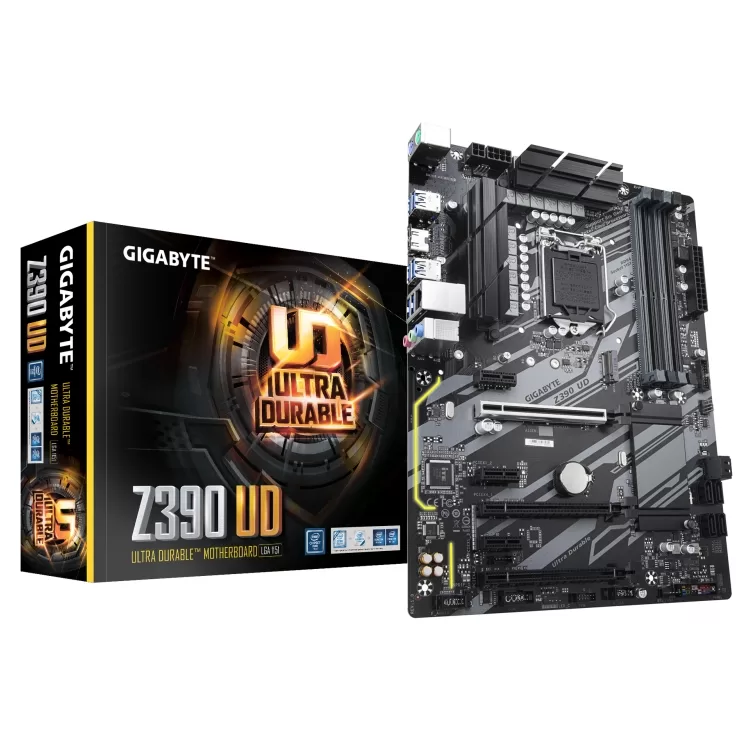

Mainboard Gigabyte Z390-UD
Liên hệ báo giáXin vui lòng Zalo: 0984 104 265 để cập nhật giá mới nhất!
- Ram hỗ trợ: 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules - Kiểu Sockets Supported: LGA1151
- Chipset: Intel® Z390 Express Chipset
Mô tả
Thông số sản phẩm
Bảo hành | 36 tháng |
Ram hỗ trợ | 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules |
Kiểu Sockets Supported | LGA1151 |
Chipset | Intel® Z390 Express Chipset |
khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2) 3 x PCI Express x1 slots |
LAN – WiF | Realtek® GbE LAN chip (10/100/1000 Mbit) |
Âm thanh | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
Operating System Support | Support for Windows 10 64-bit |
Cổng I / O phía sau | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x HDMI port 6 x USB 3.1 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x S/PDIF Out header 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
Chuẩn thiết kế ATX | ATX Form Factor; 30.5cm x 23.0cm |
Cổng lưu trữ / kết nối | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
Đồ họa | 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz |
Rate this product
