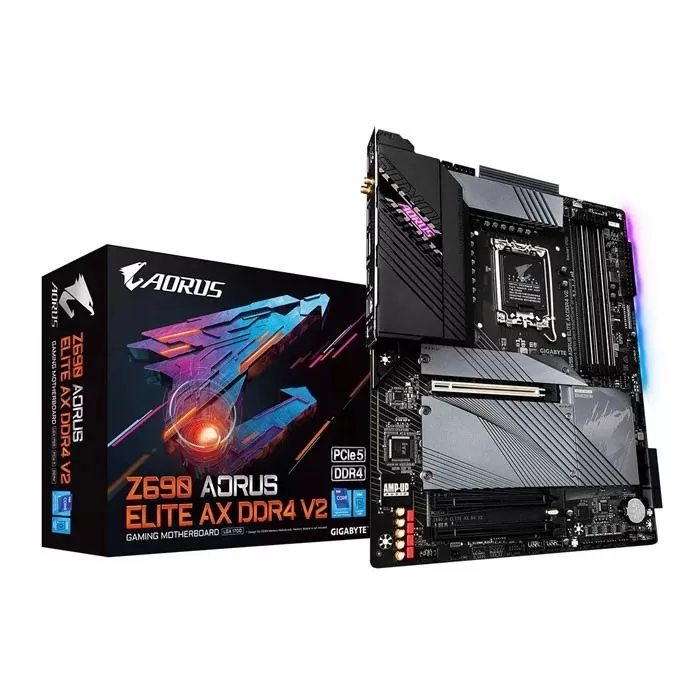

Mainboard Gigabyte Z690 Aorus Elite AX DDR4 V2
Liên hệ báo giá- Kích thước: ATX Form Factor; 30.5cm x 24.4cm
- Kiểu Sockets Supported: LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
* Please refer to “CPU Support List” for more information. - Chipset: Intel® Z690 Express Chipset
MẠCH CHÍNH VI TÍNH GIGABYTE Z690A ELITE AX D4 V2
Với tốc độ phát triển của công nghệ, GIGABYTE vẫn luôn cập nhật các xu hướng mới nhất và cung cấp cho khách hàng những tính năng tiên tiến và công nghệ mới nhất. Bo mạch chủ GIGABYTE Z690 Series đi kèm với giải pháp năng lượng nâng cấp, các tiêu chuẩn lưu trữ mới nhất và khả năng kết nối vượt trội để tối ưu hóa hiệu suất cho chơi game.
iệu suất không bị điều chỉnh của Bo mạch chủ GIGABYTE Z690 Series được đảm bảo bằng thiết kế tản nhiệt sáng tạo và tối ưu hóa để đảm bảo CPU, Chipset, SSD ổn định và nhiệt độ thấp nhất trong điều kiện tải đầy đủ ứng dụng và chơi game
Bo mạch chủ GIGABYTE Z690 Series cho phép bạn trải nghiệm khả năng kết nối linh hoạt và tốc độ truyền dữ liệu nhanh chóng với kết nối mạng, lưu trữ và WIFI thế hệ tiếp theo.
Bo mạch chủ GIGABYTE cung cấp một số phần mềm hữu ích và trực quan để giúp người dùng kiểm soát mọi khía cạnh của bo mạch chủ và cung cấp hiệu ứng ánh sáng có thể tùy chỉnh với tính thẩm mỹ nổi bật để phù hợp với cá tính độc đáo của bạn.
GIGABYTE Ultra Durable ™ có độ bền sản phẩm và quy trình sản xuất chất lượng cao. Bo mạch chủ GIGABYTE sử dụng các thành phần tốt nhất và gia cố từng khe để làm cho từng khe chắc chắn và bền bỉ.
Tính năng chính
Hỗ trợ bộ xử lý dòng Intel ® Core ™ thế hệ thứ 12
Kênh đôi DDR4 không có bộ đệm ECC, 4 DIMM
Thiết kế nguồn điện kỹ thuật số pha lai kép 16 * + 1 + 2 với giai đoạn công suất 70A và tụ điện polyme Tantali
Định tuyến bộ nhớ được che chắn để tránh nhiễu
Thiết kế tản nhiệt được che phủ hoàn toàn với tản nhiệt MOSFET có độ che phủ cao
Intel ® WIFI 6E 802.11ax 2T2R & BT5 với AORUS Antenna
Âm thanh AMP-UP với Tụ âm thanh ALC1220 và WIMA
Mạng LAN 2,5GbE nhanh với quản lý băng thông
4x NVMe PCIe 4.0 / 3.0 x4 M.2 siêu nhanh với hệ thống bảo vệ nhiệt mở rộng
SuperSpeed USB 3.2 Gen2x2 TYPE-C ® mang lại tốc độ truyền lên đến 20Gb / giây
RGB FUSION 2.0 với thiết kế hiển thị ánh sáng LED địa chỉ đa vùng, hỗ trợ dải LED và dải LED RGB có địa chỉ
Quạt thông minh 6 có nhiều cảm biến nhiệt độ, đầu cắm quạt lai với FAN STOP
Q-Flash Plus Cập nhật BIOS mà không cần cài đặt CPU, bộ nhớ và cạc đồ họa
* Thiết kế nguồn song song 8 + 8 pha
CPU
- LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.
Chipset
- Intel® Z690 Express Chipset
Memory
- Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3 - (Graphics specifications may vary depending on CPU support.)
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Audio
- Realtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio. - High Definition Audio
- 2-channel analog output
- Support for S/PDIF Out
7.1-channel digital signals
* Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
- Realtek® ALC1220-VB CODEC
LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.) - 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
- 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 4 x M.2 Socket 3 connectors
- 6 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x reset button
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors
- 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (2T2R)
- 1 x HDMI port
- 1 x DisplayPort
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer - Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
Thông số sản phẩm
Kích thước | ATX Form Factor; 30.5cm x 24.4cm |
Kiểu Sockets Supported | LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please refer to “CPU Support List” for more information. |
Chipset | Intel® Z690 Express Chipset |
LAN – WiF | LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX210 |
Âm thanh | Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
Operating System Support | Support for Windows 11 64-bit Support for Windows 10 64-bit |
Cổng I / O phía sau | Back Panel Connectors 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support |
Cổng I/O ở trong | Internal I/O Connectors 1 x 24-pin ATX main power connector |
Cổng lưu trữ / kết nối | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready Chipset: |
