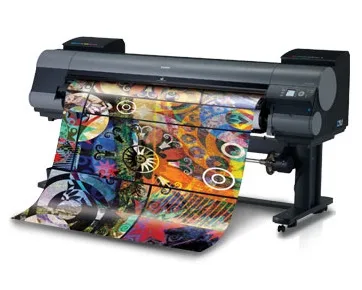

Máy in khổ lớn A0 Canon imagePROGRAF iPF9410
Liên hệ báo giáMáy in khổ lớn A0 Canon imagePROGRAF iPF9410
– Sử dụng hệ thống 12 màu mực Pigment
– Tốc độ in: 3.3 phút/ trang A0
– Khổ giấy in: Tối đa 60 inch
– Độ phân giải: 2400 x 1200dpi
– Dung tích hạt hộp mực: 330/700ml
– Kích thước hạt mực: 4pl
– Hệ thống vòi phun tiên tiến: 30.720 vòi phun
– Cổng giao tiếp: USB 2.0, Ethernet
– RAM chuẩn: 640 MB; HDD 250 GB
– Chân máy (Print stand ST 43)
Thông số kỹ thuật và tính năng
Print Head | PF-05 |
Technology | FINE (Photolithography Inkjet Nozzle Engineering) |
Print Resolution (Max.) | 2400 x 1200dpi |
Number of Nozzles | 2,560 Nozzles per Colour (30,720 Total) |
Droplet Size | 4 Picoliter |
Nozzle Pitch (Head Resolution) | 1200dpi x Two Rows |
Ink Type | LUCIA EX (pigment-based) |
Model | (330ml) PFI8306: MBK/ BK/ PC /C /PM /M /Y /R /G/ B/ GY/ PGY |
(700ml) PFI8706: MBK/ BK/ PC/ C/ PM/ M/ Y/ R/ G/ B/ GY/ PGY | |
Ink Capacity | 330ml / 700ml each (bundled starter ink: 330ml) |
Number of Colours | 12 |
Ink Supply Method | Tubing system (with sub-tank) |
Nozzle Recovery System | Non-firing Nozzle Detection and Compensation |
Printer Controller | L-COA Controller |
Printer Memory | 640MB |
Media feed | One Roll, Front-loading, Front Output |
Cut sheet (Front-loading, Front Output (Manual feed using media locking lever) | |
Hard Disk | 250GB |
Media Width | Roll paper: 254 – 1524 mm |
Cut sheet : 203 – 1524 mm | |
Cutsheet | ISO A4, A3, A3+, A2, A2+, A1, A0, B4, B3, B2, B1, B0, DIN C4, C3, C2, C1, C0, JIS B4, B3, B2, B1, B0, ANSI 8.5′ x 11′, 8.5′ x 14′, 11′ x 17′, 13′ x 19′, 17′ x 22′, 22′ x 34′, 28′ x 40′, 34′ x 44′, ARCH 9′ x 12′, 12′ x 18′, 18′ x 24′, 24′ x 36′, 26′ x 38′, 27′ x 39′, 30′ x 42′, 36′ x 48′, Photo 20′ x 24′, 18′ x 22′, 14′ x 17′, 12′ x 16′, 10′ x 12′, 10′ x 15′, 8′ x 10′, 16′ x 20′ (US Photo size), Poster 20′ x 30′, 30′ x 40′, 42′ x 60′, 44′ x 62′, 300 x 900 mm, Others 13′ x 22′ |
Roll paper | Width: ISO A3, A2, A1, A0, JIS B2, B1, B0, ARCH 24′, 30′, 36′, Others 10′, 14′, 16′, 17′, 42′, 44′, 50′, 54′, 60′ |
Media Type | Plain Paper, Economy Bond Paper, Universal Bond Paper, Canon Premium Plain Paper 80,Canon Coated Paper, Canon Matte Coated Paper 90gsm, Canon Hi Resolution Coated Bond ,Canon Opaque White Paper 120g, Canon Heavyweight Coated Paper, Canon Matt Coated Paper 140g, Canon Matte Coated Paper 170gsm, Canon Matt Coated Paper 180g, Canon Hi Res Barrier Paper, Canon Hi Res Graphic Paper, Canon Glossy Photo Paper 170gsm, Canon Satin Photo Paper 170gsm, Canon Glossy Photo Paper HG 170, Canon Semi-GlossyPhotoPaperHG170, Canon Glossy Photo Paper 200gsm, Canon Satin Photo Paper 200gsm, Canon Glossy Photo Paper 240gsm, Canon Satin Photo Paper 240gsm, Canon Glossy Photo Paper HG 255, Canon Semi-GlossyPhotoPaperHG255, Canon Premium RC Photo Luster, Canon Pearl Photo paper 260g, Canon Premium Glossy Paper 2 280, Canon PremiumSemi-GlossyPpr2 280, Canon Proofing Paper, Canon Proofing Paper Glossy 195g and others |
Roll Feed | All Sides: 5 mm or 0 mm for Borderless |
Manual Feed | Left, Right, Top: 5 mm |
Bottom: 23 mm (Front feed) or 5 mm (Top feed) | |
Minimum Printable Media length | 203.2 mm |
Roll Feed | 59′ (18m) |
Cutsheet | 5.2′ (1.6m) |
Borderless Printing Widths (Roll Media Only) | 515 mm (JIS B2), 1.030 mm (JIS B0), 594 mm (ISO A1), 841 mm (ISO A0), 10′, 14′, 17′, 24′, 36′, 42′, 44′, 50′, 60′ |
Media Cutter | Automatic horizontal cutting (Rotary cutter) |
Roll Feed | 0.07 – 0.8 mm |
Cut sheet | 0.07 – 0.8 mm |
Media Core Sizes | Internal diameter of roll core: 2′ / 3′ |
Maximum Roll Outer Diameter | 150mm |
Software Included | Canon Printer Driver, Print Plug-in for Adobe Photoshop. Print Plug-in for Digital Photo Professional, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft® Word / Excel / PowerPoint (PC only), Accounting Manager, Gallery Wrap Feature |
Printer Language | GARO (Canon Proprietary) |
Operating Systems | Windows® (XP / Vista 32/64bit / Windows 7 32/64bit), Macintosh® (OSX) |
Standard (Built-in) | USB 2.0 Hi-Speed, 10 / 100 / 1000Base-T / TX |
Operation | Approx. 52dB (A) or Less |
Standby | 35dB (A) or Less |
Acoustic Power | Approx. 68dB |
Power Supply | AC 100 – 240V (50 – 60Hz) |
Maximum | 190W or Less |
Standby (100 – 120V) | 5W or Less |
Standby (220 – 240V) | 6W or Less |
Power Off | 0.5 W or Less |
Certifications | International Energy Star Program (WW), RoHS directive, IT ECO Declaration (Europe), WEEE (Europe / India), Executive Order of the President of the United States of America, China RoHS directive, Erp directive, REACH ,EPEAT, SPRING |
Dimensions (W x D x H) | 2,299 (W) x 766 (D) x 1,144 (H) mm (with Printer Stand) |
Weight (with Stand) | Approx. 164 kg |
– Bảo hành: 12 tháng
