Chi tiết và thông số kỹ thuật

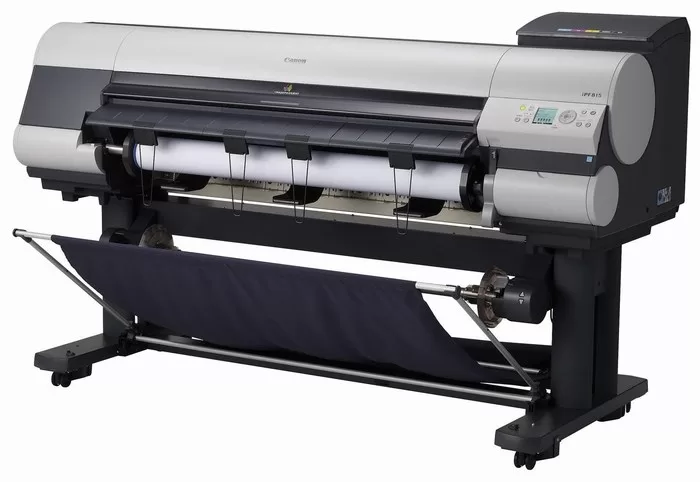

Máy in khổ lớn B0 Canon imagePROGRAF iPF815
– Sử dụng hệ thống 5 màu mực Pigment
– Tốc độ in: 55 phút/ trang B0 (44 inch)
– Độ phân giải: 2400 x 1200 dpi
– Khổ giấy in: Tối đa B0 (44 inch) tốt nhất dùng in bản vẽ
– Dung tích hạt hộp mực: 330/700 ml
– Kích thước hạt mực: 4 pl
– Hệ thống vòi phun tiên tiến: 15.360 vòi phun
– Cổng giao tiếp: USB 2.0, Ethernet
– RAM chuẩn: 384 MB, HDD: 160 GB
– Chân máy (Print Stand ST 44)
Thông số kỹ thuật và tính năng
|
Print Head |
PF-03 |
|
|
Technology |
FINE (Photolithography Inkjet Nozzle Engineering) |
|
|
Print Resolution (Max.) |
2400 x 1200 dpi |
|
|
Line Accuracy |
± 0.1% or less |
|
|
Minimum line Weight |
0.02mm |
|
|
Number of Nozzles |
Matte Black |
5.120 Nozzles |
|
Other Colours |
2.560 Nozzles per Colour |
|
|
Droplet Size |
4 Picoliter |
|
|
Nozzle Pitch (Head Resolution) |
1200dpi x Two Rows |
|
|
Print Head Swath |
1.07 in. |
|
|
Ink Type |
Dye |
Cyan (C), Magenta (M), Yellow (Y), Black (K) |
|
Pigment |
Matte Black (MBK) |
|
|
Model |
PFI-303 / PFI-703 |
|
|
Ink Capacity |
330ml / 700ml |
|
|
Number of Colours |
5 |
|
|
Ink Supply Method |
Tubing system (independent ink tanks) |
|
|
Nozzle Recovery System |
Non-firing Nozzle Detection and Compensation |
|
|
Printer Controller |
L-COA Controller |
|
|
Hard Disk |
2.5-inch, 160GB, 5400rpm, S-ATA interface |
|
|
Memory |
32GB (Physical DRAM: 384MB) |
|
|
Media feed |
Front-loading, Front-Output (1 roll – iPF815) |
|
|
Roll Feed |
254mm – 1118mm |
|
|
Cutsheet |
203mm – 1118mm |
|
|
Cutsheet |
ISO – A4, A3, A3+, A2, A2+, A1, A0, B4, B3, B2, B1, B0, DIN – C4, C3, C2, C1, C0, JIS – B4, B3, B2, B1, B0, ANSI – 8.5 x 11′, 8.5 x 14′, 11 x 17′, 13 x 19′, 17 x 22′, 22 x 34′, 28 ｘ 40′, 34 ｘ 44′, ARCH – 9 x 12′, 12 x 18′, 18 x 24′, 24 x 36′, 26 ｘ 38′, 27 x 39′, 30 x 42′, 36 x 48′, Photo – 20 x 24′, 18 x 22′, 14 x 17′, 12 x 16′, 10 x 12′, 10 x 15′, 8 x 10′, 16 x 20′(US Photo size), Poster – 20 x 30′, 30 x 40′, 42 x 60′, 44 x 62′, 300 x 900mm, Others – 13 x 22′ |
|
|
Roll paper (width) |
ISO – A3, A2, A1, A0, JIS – B2, B1, B0, ARCH – 24′, 30′, 36′, Others – 10′, 14′, 16′, 17′, 42′, 44′ |
|
|
Roll Feed |
All Sides |
3mm or 0mm for Borderless |
|
Manual Feed |
Left, Right, Top |
3mm |
|
Bottom |
23mm |
|
|
Minimum Printable Media length |
8.0′ (203mm) |
|
|
Roll Feed |
59′ (18m) |
|
|
Manual Feed (Front) |
5.2′ (1.6m) |
|
|
Media Cutter |
Automatic horizontal cutting (Rotary cutter), independent unit |
|
|
Front-loading Manual Feed |
0.07 – 0.8mm |
|
|
Roll Feed |
0.07 – 0.8mm |
|
|
Media Core Sizes |
Internal diameter of roll core: 2′ / 3′ |
|
|
Maximum Roll Outer Diameter |
150 mm |
|
|
Printing Software |
imagePROGRAF Printer Driver 2008, HDI Driver for AutoCAD / AutoCAD, |
|
|
LT 2000 – 2008, Printer Driver Extra Kit (Free Layout, imageRUNNER Linking Function) |
||
|
Utilities |
Media Configuration Tool |
|
|
Applications |
GARO Device Setup Utility, Poster Artist 2008 (optional) |
|
|
Device Status |
GARO Status Monitor, Remote UI |
|
|
Printer language |
GARO (Graphic Arts language with Raster Operations), HP- GL/2, HP RTL |
|
|
Operating Systems |
Windows 2000 / XP / Windows Vista Macintosh OS 9 / 10 (PowerPC or Intel) |
|
|
Standard (Built-in) |
USB 2.0 Hi-Speed, 10 / 100Base-T / TX |
|
|
Optional |
IEEE1394 (FireWire) |
|
|
Power Supply |
AC 100 – 240V (50 – 60Hz) |
|
|
Maximum |
190W or Less |
|
|
Temperature |
15 – 30°C |
|
|
Relative Humidity |
10 – 80% (No Condensation) |
|
|
Dimensions (H x W x D) |
1893 x 975 x 1144mm (with Printer Stand) |
|
|
Weight (with Stand) |
Approx. 138 kg |
|
– Bảo hành: 12 tháng
