Chi tiết và thông số kỹ thuật

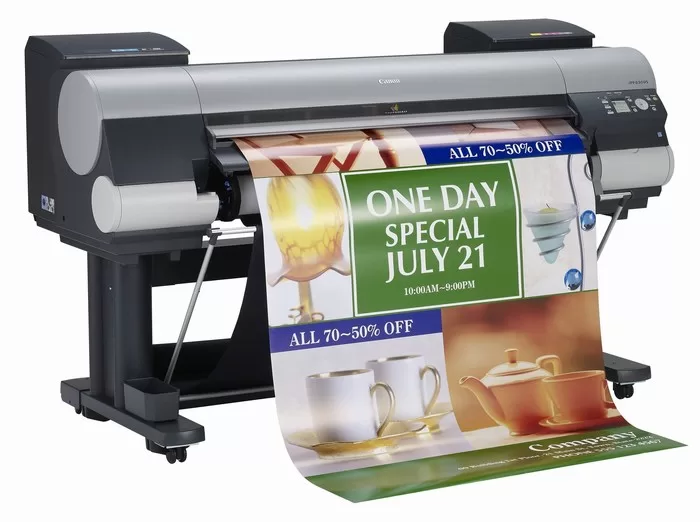

Máy in khổ lớn B0 Canon imagePROGRAF iPF8300S
– Sử dụng hệ thống 8 màu mực Pigment
– Tốc độ in: 3.2 phút/ trang B0+ (44 inch)
– Độ phân giải: 2400 x 1200 dpi
– Khổ giấy in: Tối đa B0+ (44 inch)
– Dung tích hạt hộp mực: 330/700 ml
– Kích thước hạt mực: 4 pl
– Hệ thống vòi phun tiên tiến: 30.720 vòi phun
– Cổng giao tiếp: USB 2.0, Ethernet
– Hiệu quả khi in đồ họa và các bản vẽ thông thường
– RAM chuẩn: 384 MB; HDD 160GB
– Chân máy (Print Stand ST 43)
Thông số kỹ thuật và tính năng
|
Ink Type |
LUCIA EX; 8-color ink: MBK, BK, C, M, Y, PC, PM, GY |
|
|
Maximum print resolution |
2400 x 1200dpi |
|
|
Media Feed and Output |
Roll paper (Auto Roll Feed Unit: (Standard) |
One Roll, Front-loading, Front Output |
|
Cut sheet |
Front-loading, Front Output (Manual feed using media locking lever) |
|
|
Paper path switch (roll/cut sheet) |
Manually switchable by user |
|
|
Delivery direction |
Face-up, Front side |
|
|
Media Take-up Unit |
Option |
|
|
Maximum stacking number of delivered prints |
One sheet (when using Basket equipped as standard) |
|
|
Media Size |
Roll paper (Width) |
ISO – A3, A2, A1, A0 JIS – B2, B1, B0 |
|
ARCH – 24′, 30′, 36′ |
||
|
Others – 10′, 14′, 16′, 17′, 42′, 44′ |
||
|
Cut sheet |
ISO – A4, A3, A3+, A2, A2+, A1, A0, B4, B3, B2, B1, B0 |
|
|
DIN – C4, C3, C2, C1, C0 JIS – B4, B3, B2, B1, B0 |
||
|
ANSI – 8.5 x 11′, 8.5 x 14′, 11 x 17′, 13 x 19′, 17 x 22′, 22 x 34′, 28 x 40, 34 x 44′ |
||
|
ARCH – 9 x 12′, 12 x 18′, 18 x 24′, 24 x 36′, 26 x 38′, 27 x 39′, 30 x 42′, 36 x 48′ |
||
|
Photo – 20 x 24′, 18 x 22′, 14 x 17′, 12 x 16′, 10 x 12′, 10 x 15′, 8 x 10′, 16 ｘ 20′ |
||
|
(US Photo size) Poster – 20 x 30′, 30 x 40′, 42 x 60′, 44 x 62′, 300 x 900mm |
||
|
Others – 13 x 22′ |
||
|
Media Thickness |
Roll paper: 0.07 – 0.8mm |
|
|
Cut sheet: 0.07 – 0.8mm |
||
|
Maximum Outside Diameter of Roll Paper |
150mm or less |
|
|
Media Core Size |
Internal diameter of roll core: 2′ / 3′ (Option) |
|
|
Media Width |
Roll paper: 254 – 1118.0mm |
|
|
Cut sheet: 203.2 – 1118.0mm |
||
|
Minimum Printable Paper Length |
Roll paper: 203.2mm |
|
|
Cut sheet: 203.2mm |
||
|
Maximum Printable Paper Length |
Roll paper: 18m (Varies according to the OS and application) |
|
|
Cut sheet: 1.6m |
||
|
Margins |
Recommended area (Roll paper) |
Left: 5mm, Right: 5mm, Top: 20mm, Bottom: 5mm |
|
Recommended area (Cut sheet) |
Left: 5mm, Right: 5mm, Top: 20mm, Bottom: 23mm |
|
|
Printable area (Roll paper) |
Left: 5mm, Right: 5mm, Top: 5mm, Bottom: 5mm |
|
|
Borderless print: Left: 0mm, Right: 0mm, Top: 0mm, Bottom: 0mm |
||
|
Printable area (Cut sheet) |
Left: 5mm, Right: mm, Top: 5mm, Bottom: 23mm |
|
|
Borderless Printing (Roll paper only) |
Media width |
515mm (JIS B2), 1, 030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10′, 14′, 17′, 24′, 36′, 42′, 44′ |
|
Media feed capacity |
Manual feed |
1 sheet (from front) |
|
Memory |
Standard memory |
384MB |
|
Hard Disk |
2.5′ 160GB 5400rpm S-ATA I/F |
|
|
Interface |
Hi-Speed USB Type |
Built-in |
|
Hi-Speed USB Mode |
Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer |
|
|
Hi-Speed USB Connector Type |
Series B (4 pins) |
|
|
Ethernet Type |
Built-in |
|
|
Ethernet Standard |
IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / Auto-Negotiation, IEEE 802.3x Full Duplex |
|
|
Ethernet Protocol |
IPX/SPX (Netware 4.2(J), 5.1(J), 6.0(J)), SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk |
|
|
Acoustic Noise |
Acoustic pressure |
Operation: 50dB (A), (Coated paper; Print Priority: Image; Standard mode) |
|
Power Supply
|
Input power |
AC 100 – 240V (50 – 60Hz) |
|
Power consumption |
Operation: 190W or less |
|
|
Standby power consumption |
100V – 120V: 5W or less |
|
|
(At the low power mode) |
220V – 240V: 6W or less |
|
|
Power off (standby) |
1W or less |
|
|
(In compliance with Executive Order of the President of the United States of America) |
||
|
Dimensions (W x D x H), Net Weight |
Main unit and Printer Stand |
1,893 x 975 x 1,144mm |
|
Weight: approx. 143kg |
||
– Bảo hành: 12 tháng
