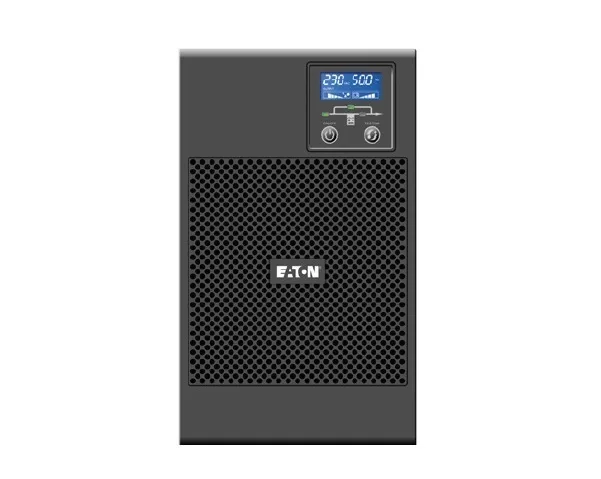

Nguồn lưu điện UPS EATON 9E1000I
6.900.000 ₫
Nguồn lưu điện UPS EATON 9E1000I
– Online double conversion topology.
– Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status.
– Provides more real power (watts) to protect more equipment with a 0.8 power factor.
– Internal bypass and maintenance bypass are available as standards.
– Communication through USB, RS232 serial or over the network with an optional network card.
– Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat).
– CE compliance certified by external agency (CB report from the TUV).
Specifications
Model | 9E1000I |
Rating | 1000VA/ 800W |
Format | Tower |
Electrical Characteristics | |
Technology | Online double conversion |
Input Voltage | 208/220/230/240V |
Input voltage range without using batteries | 176-300V without derating (up to 100-300V with derating) |
Output voltage/THDU | 220V/230V/240V ±1 %, THDU: <2% for 100% linear load, <6% for 100% non-linear load |
Input frequency range | 40Hz-70Hz, 50/60Hz autoselection |
Efficiency | Up to 91% in Online mode, 98% in ECO mode |
Overload capacity (in on-line mode) | 105%-130% : 60s, 130%-150% : 10s, >150% : ≥300ms |
Connections | |
Input | IEC C14 |
Output | 4 x IEC C13 |
Typical backup times at 100% Load | |
9E | 4 minutes |
Communication | |
Communication ports | 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) |
Communication slot | 1 slot for Network-MS, ModBus-MS or Relay-MS cards |
Software | Intelligent Power Software |
General | |
Operating temperature | 0 to 40°C |
Noise level | 36dB @ typical load |
Safety | IEC/EN 62040-1 |
EMC, Performance | IEC/EN 62040-2 |
Approvals | CE, CB report (TUV) |
UPS Dimensions | 356 x 228 x 144 mm |
UPS Weight | 9.4kg |
– Bảo hành: 2 năm.
