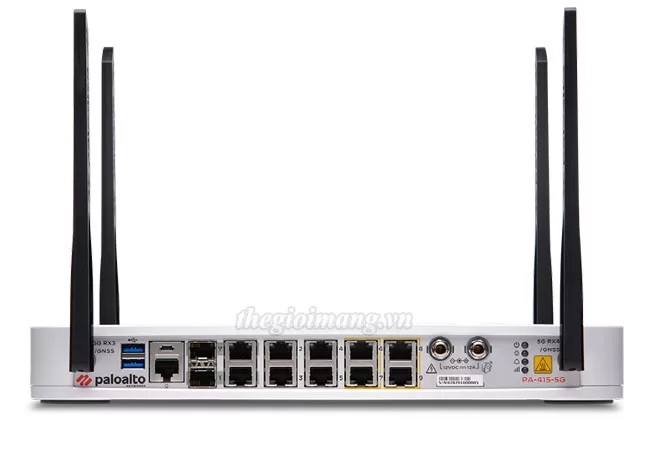

Palo Alto PA-415-5G (PAN-PA-415-5G)
Liên hệ báo giáThiết bị tường lửa Palo Alto Networks PA-415-5G (PAN-PA-415-5G)
- Emb. 5G Wireless WAN Module, (1) 1G SFP/RJ45 combo, (4) 1G RJ45, (4) 1G RJ45/PoE
- SFP/RJ45 (1 GB) combo MGT (1), RJ45 console (1), USB (2), Micro USB console (1) ports
- 1.3/1.2 Gbps Firewall throughput (HTTP/appmix)
- 0.6/0.6 Gbps Threat Prevention throughput (HTTP/appmix)
- 64,000 Max sessions
Thiết bị tường lửa Palo Alto Networks PA-415-5G
SKU | PAN-PA-415-5G |
---|---|
Performance and Capacities | |
Firewall throughput (HTTP/appmix) | 1.3/1.2 Gbps |
Threat Prevention throughput (HTTP/appmix) | 0.6/0.6 Gbps |
IPsec VPN throughput | TBD |
Max sessions | 64,000 |
New sessions per second | TBD |
Virtual systems (base/max) | 1/1 |
Hardware Specifications | |
I/O | Embedded 5G Wireless WAN Module (1) 1G SFP/RJ45 combo (4) 1G RJ45 (4) 1G RJ45/PoE |
Management I/O | SFP/RJ45(1 GB) combo management port (1) RJ45 console port (1) USB port (2) Micro USB console port (1) |
Power Over Ethernet (PoE) | PoE 1G RJ45 ports (4) Total PoE Budget: 91 W Maximum loading on single port: 60 W |
Storage Capacity | 128 GB eMMC |
Power Supply (Avg/Max Power Consumption) | 39/44 W |
Max BTU/hr | 150 |
Input Voltage (Input Frequency) | 100–240 VAC (50–60Hz) |
Max Current Consumption | 3.7 A @ 12 VDC |
Max Inrush Current | 3.5 A |
Dimensions | 1.73″ H x 9″ D x 13″ W |
Weight (Standalone Device/As Shipped) | 7.85 lbs |
Safety | cTUVus, CB |
EMI | FCC Class B, CE Class B, VCCI Class B |
Environment | Operating temperature: 32° to 104° F, 0° to 40° C Non-operating temperature: -4° to 158° F, -20° to 70° C Passive cooling |
PA-400 Series Networking Features | |
---|---|
Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 |
SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC |
IPsec VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP |
Data sheet Palo Alto Networks PA-400 Series
PA-400 Series Hardware | |
---|---|
Palo Alto Networks PA-415-5G | #PAN-PA-415-5G |
PA-415-5G – Bundle Subscriptions for 36 months | |
GlobalProtect subscription, 3 years (36 months) term. | #PAN-PA-415-5G-GP-3YR |
PA-415-5G, Threat prevention subscription, 3 years (36 months), term | #PAN-PA-415-5G-TP-3YR |
PA-415-5G, PAN-DB URL Filtering subscription, 3 years (36 months), term. | #PAN-PA-415-5G-URL4-3YR |
PA-415-5G, WildFire subscription, 3 years (36 months), term. | #PAN-PA-415-5G-WF-3YR |
PA-415-5G, DNS security subscription, 3 years (36 months), term. | #PAN-PA-415-5G-DNS-3YR |
PA-415-5G, Advanced URL Filtering subscription, 3 years (36 months) term. | #PAN-PA-415-5G-ADVURL-3YR |
PA-415-5G, DLP subscription, 3 years (36 months), term. | #PAN-PA-415-5G-DLP-3YR |
PA-415-5G, IoT subscription, 3 years (36 months) term | #PAN-PA-415-5G-IOT-3YR |
SaaS Inline subscription, 3 years (36 months) term | #PAN-PA-415-5G-SAAS-INLINE-3YR |
Advanced Threat | |
PA-415-5G, Advanced Threat, 3 years (36 months) term. | #PAN-PA-415-5G-ATP-3YR |
PA-415-5G, Advanced Wild Fire subscription, 3 years (36 months) term. | #PAN-PA-415-5G-AWF-3YR |
Detect and Prevent Advanced Threats with Cloud-Delivered Security Services
- Advanced Threat Prevention: Stop known exploits, malware, malicious URLs, spyware, and com-mand and control (C2) with 96% prevention of web-based Cobalt Strike C2 and 48% more unknown C2 detected than the industry’s leading intrusion prevention (IPS) solution.
- Advanced WildFire malware prevention: Ensure files are safe by automatically detecting and preventing unknown malware 180x faster with the industry’s largest threat intelligence and malware prevention engine
- Advanced URL Filtering: Enable safe access to the internet with the industry’s first real-time preven-tion of known and unknown websites, stopping 76% of malicious URLs 24 hours before other vendors
- DNS Security: Gain 40% more DNS-attack coverage and disrupt the 80% of attacks that use DNS for command and control and data theft without requiring any changes to your infrastructure.
- Enterprise DLP: Minimize risk of a data breach, stop out-of-policy data transfers, and enable compliance consistently across your enterprise with 2x greater coverage of any cloud-delivered enterprise DLP
- SaaS Security: Stay ahead of the SaaS explosion with the industry’s only Next-Generation CASB to automatically see and secure all apps across all protocols.
- IoT Security: Safeguard every “thing” and implement Zero Trust device security 20x faster with the industry’s smartest security for smart devices.
