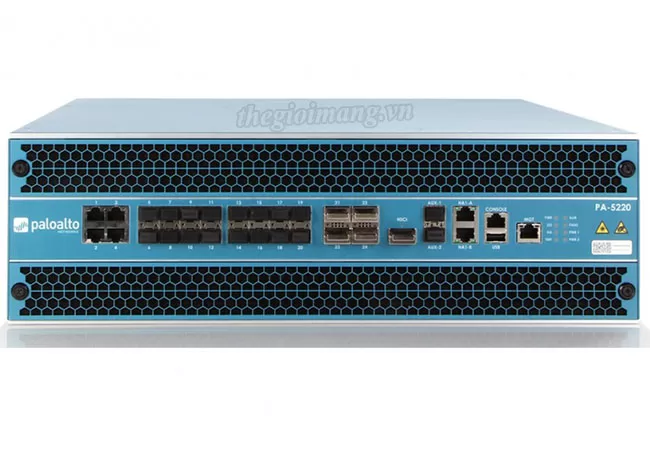

Palo Alto PA-5220 (PAN-PA-5220-AC)
Liên hệ báo giáThiết bị tường lửa Palo Alto Networks PA-5250 (PAN-PA-5220-AC)
- 100/1000/10G RJ45 (4), 1G/10G SFP/SFP+ (16), 40G QSFP+ (4)
- 10/100/1000 (2), 40G QSFP+ HA (1), 10/100/1000 out-of-band management (1), RJ45 console port (1)
- Storage Capacity: 240 GB SSD, 2 TB HDD
- Firewall throughput: 13.9/15.6 Gbps
- IPsec VPN throughput: 9.5 Gbps
- Max sessions: 4M (155,000 per sec.)
- Virtual systems (base/max): 10/20.
Thiết bị tường lửa Palo Alto Networks PA-5220
SKU | PAN-PA-5220-AC |
---|---|
Performance and Capacities | |
Firewall throughput (HTTP/appmix) | 13.9/15.6 Gbps |
Threat Prevention throughput (HTTP/appmix) | 7.1/8.8 Gbps |
IPsec VPN throughput | 9.5 Gbps |
Max sessions | 4M |
New sessions per second | 155,000 |
Virtual systems (base/max) | 10/20 |
Hardware Specifications | |
I/O | 100/1000/10G Cu (4), 1G/10G SFP/SFP+ (16), 40G QSFP+ (4) |
Management I/O | 10/100/1000 (2) 40G QSFP+ HA (1) 10/100/1000 outof-band management (1) RJ45 console port (1) |
Storage Capacity | 240 GB SSD, RAID1, system storage 2 TB HDD, RAID1, log storage |
Power Supply (Avg/Max Power Consumption) | 571 / 685 W |
Max BTU/hr | 2,340 |
Power Supplies (Base/Max) | 1:1 fully redundant (2/2) |
AC Input Voltage (Input Frequency) | 100–240 VAC (50–60 Hz) |
AC Power Supply Output | 1,200 watts/power supply |
Max Current Consumption | AC: 8.5 A @ 100 VAC, 3.6 A @ 240 VAC |
Max Inrush Current | AC: 50 A @ 230 VAC, 50 A @ 120 VAC |
Mean Time Between Failure (MTBF) | 9.12 years |
Rack Mount (Dimensions) | 3U, 19” standard rack 5.25” H x 20.5” D x 17.25” W |
Weight (Standalone Device/As Shipped) | 46 lbs / 62 lbs |
Safety | cTUVus, CB |
EMI | FCC Class A, CE Class A, VCCI Class A |
Environment | Operating temperature: 32° to 122° F, 0° to 50° C Non-operating temperature: -4° to 158° F, -20° to 70° C |
Networking Features | |
---|---|
Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-point protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 Bidirectional Forwarding Detection (BFD) |
SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC |
IPsec VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect large-scale VPN for simplified configuration and management |
VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP |
Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
High Availability | Modes: active/active, active/passive, HA clustering Failure detection: path monitoring, interface monitoring |
Mobile Network Infrastructure | GTP Security SCTP Security |
Data sheet Palo Alto Networks PA-5200 Series
PA-5200 Series Hardware | |
---|---|
Palo Alto Networks PA-5220 with redundant AC power supplies | PAN-PA-5220-AC |
Virtual systems upgrade – Additional 10 virtual systems for PA-5220 (10 to 20) for PA-5220 | PAN-PA-5220-VSYS-50 |
Subscription | |
DNS Security subscription year 1, PA-5220 | #PAN-PA-5220-DNS |
GlobalProtect subscription year 1, PA-5220 | #PAN-PA-5220-GP |
Threat prevention subscription year 1, PA-5220 | #PAN-PA-5220-TP |
PANDB URL filtering subscription year 1, PA-5220 | #PAN-PA-5220-URL4 |
Premium support year 1, PA-5220 | #PAN-SVC-PREM-5220 |
Extends native protection across all attack vectors with cloud-delivered security subscriptions
- Threat Prevention—inspects all traffic to automatically block known vulnerabilities, malware, vulnerability ex-ploits, spyware, command and control (C2), and custom intrusion prevention system (IPS) signatures.
- WildFire® malware prevention—unifies inline machine learning protection with robust cloud-based analysis to instantly prevent new threats in real time as well as dis-cover and remediate evasive threats faster than ever
- URL Filtering—prevents access to malicious sites and protects users against web-based threats, including cre-dential phishing attacks.
- DNS Security—detects and blocks known and unknown threats over DNS (including data exfiltration via DNS tun-neling), prevents attackers from bypassing security mea-sures, and eliminates the need for independent tools or changes to DNS routing.
- IoT Security—discovers all unmanaged devices in your network quickly and accurately with ML, without the need to deploy additional sensors. Identifies risks and vul-nerabilities, prevents known and unknown threats, pro-vides risk-based policy recommendations, and automates enforcement.
- Enterprise DLP—offers the industry’s first cloud-delivered enterprise DLP that consistently protects sensitive data across networks, clouds, and users.
- SaaS Security—delivers integrated SaaS security that lets you see and secure new SaaS applications, protect data, and prevent zero-day threats at the lowest total cost of ownership (TCO)
