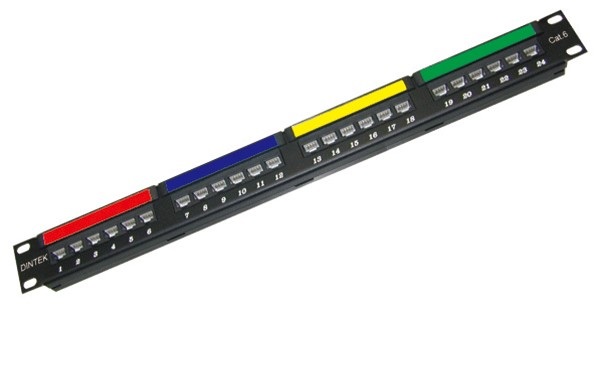

Patch panel 24 port Dintek, CAT.6, 19 inch (1402-04011)

–         Cat.6 19” 110/ Krone dual type Patch Panel 24 ports, 1U size.

–         Product Code: 1402-04011

Cat.6 19” 110/ krone dual type Patch Panel 24 ports, 1U size with color label, Component level

–         The DINTEK PowerMAX Connectivity solution is comprised of a system of patch panels, work area outlets, and patch cords to enable users to specify the highest level of channel performance available.

–         Our Category 6 patch panels are designed to exceed ANSI/TIA-568-C.2 performance specifications and are backward compatible with lower level cabling products.

–         DINTEK Category 6 panels support both T568A and T568B wiring schemes and can be terminated with an industry standard 110 or Krone installation tool. Panels include a mounting slot for the DINTEK cable management bar, which easily mounts to the back of the panel, for improved routing and strain releif functionality.

–         Combined with other DINTEK PowerMAX Products, they are the perfect solution to your voice and data communications needs.

FEATURES

–         Meet ANSI/TIA-568-C.2 Cat.6 component level connecting hardware       performance  requirements

–         Stripped window label for easy management

–         110 and krone dual type IDC termination

–         19” 24 port patch panel, 1U size & 48 port panel, 2U size.

–         Accept 22~26AWG, stranded or solid wire

–         Modular jack meet FCC part 68

–         Wiring: T568A/B

–         Optional rear cable management

ELECTRICAL CHARACTERISTICS

–         Insulation resistance between any two conductors:  500 MegaOhms min.

–         Dielectric with standing voltage: 1000V, RMS, 60HZ, 1 MIN.

–         Contact resistance: 20 MilliOhms max.

–         Current rating: 1.5 AMPS at 20℃

PHYSICAL CHARACTERISTICS

–         Housing: High-impact, flame-retardant plastic, UL94V-0 rated, Spring wire / contact blades

–         Contact material: Phosphor bronze alloy

–         Plate: SPCC-SD 16G

MECHANICAL CHARACTERISTICS

–         Total mating force: 800 GRAMS for a 8 wire leads minimum.

–         Retention: 30lbs min between the jack and plug.

–         Insertion/Extraction life: 750 cycles minimum.

–         Number of IDC terminations: 200 minimum.

STANDARDS

–         UL Verified

–         ISO/IEC11801 2nd edition

–         ANSI/TIA Standard 568-C.2

–         CENELEC EN 50173

APPLICATIONS

–         Voice; T1; ISDN

–         10BASE-T (IEEE 802.3)

–         16Mbps Token Ring (IEEE802.5)

–         100VG-AnyLAN (IEEE802.12)

–         100BASE-T Ethernet (IEEE802.3)

–         155/622Mbps 1.2/2.4 Gbps ATM

–         1000Mbps Gigabit Ethernet

–         550MHz Broadband Video
