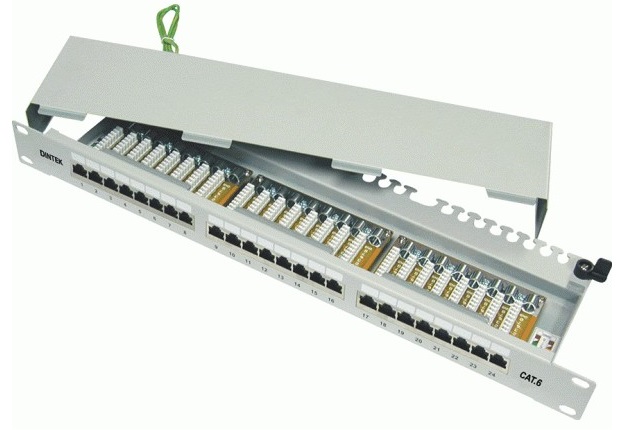

Patch panel 24-port Dinktek CAT.6 19 inch, Fully Shielded (1402-04033)

-Product Code: 1402-04033

-Patch panel 24-port Dintek, CAT.6 19 inch Fully Shielded, 24 Ports, 1U.

-Cat.6 19 inch 110/Krone type fully shielded patch panel 24 ports, 1U size Component level.

Features

-High performance, exceeds ANSI/TIA-568-C.2 Category 6 Hardware transmission performance.

-100% shielded for complete EMI/RFI protection.

-19 inch 24port patch panel, 1U size.

-110 and Krone dual type IDC termination.

-Accepts 22-26AWG, Stranded or solid wire.

-Wiring: T568A/B.

Electrical

-Insulation resistance: 500 Mega ohms min.

-Dielectric with standing voltage: 1,000 Volts, RMS, 60Hz, 1min.

-Contact resistance: 20 milli ohms max.

-Current rating: 1.5 AMPS at 20°C.

Physical

-Housing: High-impact, fl ame-retardant plastic, UL94V-0 rated.

-Material: Phosphor Bronze Alloy.

Plating: 50u” gold plated over 100u” nickel.

Sheel: Brass alloy plated with 100u” nickel.

Plate: SPCC-SD 16G.

Mechanical

-Total mating force: 800 grams for a 8 wire leads min.

-Retention: 30 lbs min between the jack and plug.

-Insertion/Extraction life: 750 cycles min.

-Number of IDC terminations: 200 cycles min.

Applications

-Voice; T1; ISDN

-10BASE-T (IEEE 802.3)

-16Mbps Token Ring (IEEE802.5)

-100VG-AnyLAN (IEEE802.12)

-100BASE-T Ethernet (IEEE802.3)

-155/622Mbps 1.2/2.4 Gbps ATM

-1000Mbps Gigabit Ethernet

-550MHz Broadband Video

 Standards

-UL Verified

-ISO/IEC11801 2nd edition

-ANSI/TIA Standard 568-C.2

-CENELEC EN 50173
