Chi tiết và thông số kỹ thuật

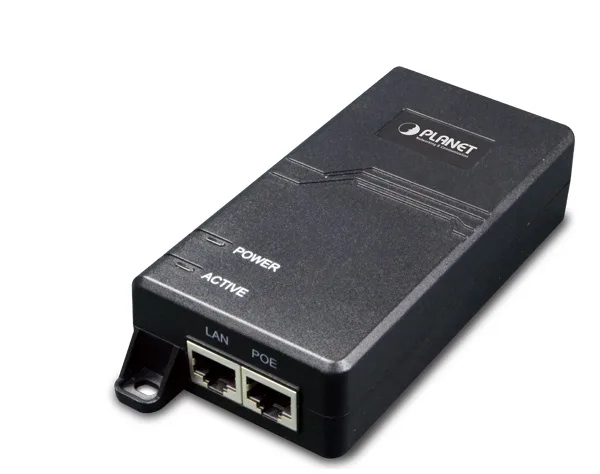

PoE Injector PLANET POE-163
– Support 2-port DJ45 interfaces: 1-port Data + Power output, 1-port Data input.
– Support 1 AC 100-240V input power socket.
Power over Ethernet
– 1-port Gigabit High Power over Ethernet Mid-span PSE.
– IEEE 802.3at Power over Ethernet Plus compliant.
– Backward compatible with IEEE 802.3af Power over Ethernet.
– Supports PoE Power up to 30 watts for PoE port.
– Up to 1 IEEE 802.3at device powered.
– Provides DC 50-54V power over RJ45 Ethernet cable to device with Ethernet port.
– Auto-detection of PoE IEEE 802.3at/af equipment and devices that could be damaged by incorrect installation.
– Remote power feeding up to 100m.
Hardware
– All-in-one design with internal power supply.
– Compact-size plastic case.
– LED indicators for Power LED and Active LED (PoE ready-in-use).
Specifications
| Hardware Specifications | |
| Interface | ‘Data’ Input Port: 1 x RJ45 STP ‘PoE (Data + Power)’ Output Port: 1 x RJ45 STP AC Input Power Socket: 1 |
| LED Indicator | System: Power x 1 (Green) PoE Port: Active, PoE ready-in-use x 1 (Green) |
| Network Cable | 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft) 100BASE-TX: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft) 1000BASE-T: 2-pair UTP Cat. 5, 5e, 6 up to 100M (328ft) EIA/TIA-568 100-ohm STP (100m) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 115 x 62.5 x 31 mm |
| Weight | 185g |
| Unit Output Voltage | DC 50-54V, 0.6A |
| Power Requirements | 100-240V AC, 50/60Hz, 0.75A |
| Power Consumption | 30 watts max. |
| Number of Devices that can be powered | 1 |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Output | DC 50-54V/30 watts |
| PoE Power Supply Type | Mid-span |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulatory Compliance | FCC Part 15 Class B, CE |
– Bảo hành: 12 tháng.
