Router CISCO C8300-2N2S-4T2X

Thương hiệuCisco
Còn hàng Hóa đơn VAT Chính sách bảo hành
THÔNG TIN SẢN PHẨM

Chi tiết và thông số kỹ thuật

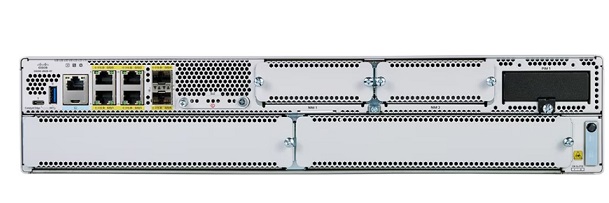

Catalyst 8300 Series Edge Platform Router CISCO C8300-2N2S-4T2X

– CISCO C8300-2N2S-4T2X là thiết bị định tuyến thuộc dòng 8300 Series Edge Platform của thương hiệu Ciso. Được trang bị 2 khe SM, 2 khe NIM, 2 cổng 10GE, 4 cổng 1GE và bộ xử lý đa lỗi Intel x86 CPU với bộ nhớ mặc định 8GB. Cung cấp tốc độ lên đến 5G.

– Bộ xử lý đa lỗi: Intel x86 CPU với bộ nhớ mặc định 8GB.

Thông số kỹ thuật

Platform specifications
C8300 2RU w/ 10G WAN
(2 SM and 2 NIM slots, and 2 x 10-Gigabit Ethernet and 4 x 1-Gigabit Ethernet ports)
10G port density: 2
1G port density: 4
Slots: 2 SM; 2 NIM; 1 PIM
Memory (DRAM) default: 8 GB
Storage (M.2 SSD) default: 16 GB
General
Typical power (watts) 275W
Software requirements Cisco IOS XE Software Release 17.3.2
Dimensions (H x W x D) 3.5 in. x 17.25 in. x 18.52 in.
Rack Units (RU) 2RU
Chassis weight with 2X AC power supplies and fan tray 40 lbs
Acoustics: Sound pressure (Typical/maximum) 59 dBa/73 dBa (Non-NEBS)
63 dBa/75 dBa (NEBS)
Acoustics: Sound power (Typical/maximum) 74 dBa/87 dBa (Non-NEBS)
77 dBa/89 dBa (NEBS)
Input voltage AC: 85 to 264 VAC
DC: -40 to 72V; 48V nominal
Operating temperature 32 to 104°F (0 to 40°C)
Storage temperature -40 to 150°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5 to 85%
Ambient (noncondensing) nonoperating and storage: 5 to 95%
Altitude 0 to 10,000 feet
(0 to 3050 meters)
Mean Time Between Failures (MTBF) 710,300 hours
Platform Performance
SD-WAN performance
SD-WAN IPsec Throughput (1400Bytes) Up to 18.8Gbps
SD-WAN IPsec Throughput with IQDF** (1400Bytes) Up to 18.8Gbps
SD-WAN IPsec Throughput (IMIX*) 7.6Gbps
SD-WAN IPsec Throughput with IQDF** (IMIX*) 5.6Gbps
SD-WAN Overlay Tunnels scale 6000
Note * IMIX is average packet size of 352 Bytes packet size
** IQDF traffic pattern: IPSec + Quality of Service (QoS) + Deep Packet Inspection (DPI) + Flexible Netflow (FNF)
SD-WAN, Multi-layer security performance use cases *
50% IQDF* + 50% (DIA w. NAT + NGFW + IPS + URLF + AMP) 5.9Gbps
DIA w. NAT + NGFW + IPS + URLF + AMP 4.9Gbps
Autonomous mode (non SD-WAN) performance specifications
IPv4 Forwarding Throughput (1400Bytes) Up to 19.7Gbps
IPsec Throughput (1400Bytes) Up to 18.9Gbps
IPsec Throughput (IMIX*) 9.3Gbps
Note * IMIX is average packet size of 352 Bytes packet size
Autonomous mode (non SD-WAN) system scalability
Number of IPsec SVTI Tunnels 4000
Number of ACLs per system 4000
Number of IPv4 ACEs per system 72K
Number of IPv4 Routes 1.6M w/ default
8GB, up to 4M w/ 32GB
Number of IPv6 Routes 1.5M w/ default
8GB, up to 4M w/ 32GB
Number of Queues 16K
Number of NAT Sessions 1.2M w/ default
8GB, up to 2M w/ 32GB
Number of Firewall Sessions 512K
Number of VRFs 4000

– Bảo hành: 12 tháng.
