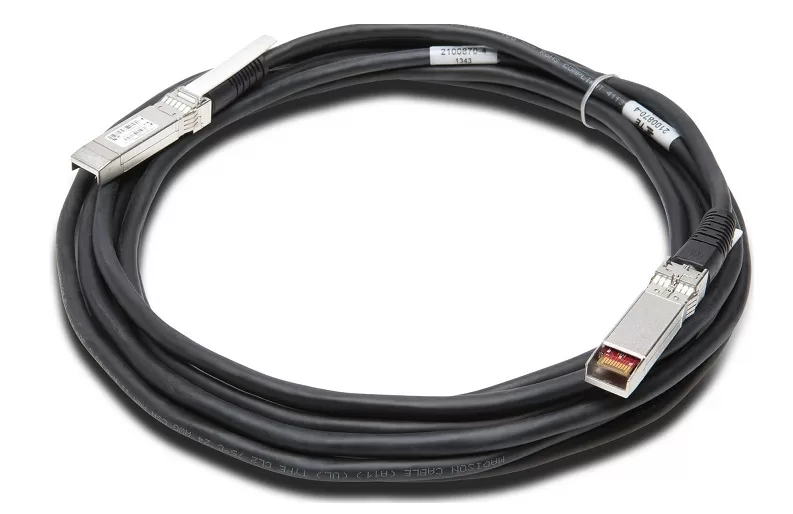

SFP+ 10 Gigabit Ethernet JUNIPER EX-SFP-10GE-DAC-1M
Liên hệ báo giáSFP+ 10 Gigabit Ethernet JUNIPER EX-SFP-10GE-DAC-1M
– SFP+ 10 Gigabit Ethernet Direct Attach Copper (Twinax Copper Cable), 1M.
Thông số kỹ thuật
| Transceiver Type | SFP+ |
| Connector | SFP+ passive Twinax cable assembly |
| Signaling rate, each lane | 10-Gbps full-duplex serial transmission |
| Wire AWG | 30 AWG |
| Cable type | Twinax |
| Distance | 1 m |
| Maximum Power consumption (W) | 0.57 W |
| Operating Temperature (range) | 0° C to 70° C |
| Storage temperature | –40° C to 85° C |
– Bảo hành: 12 tháng.
