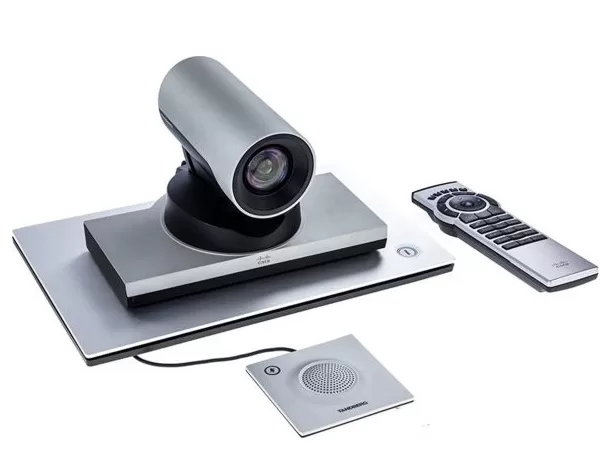

Thiết bị hội nghị truyền hình CISCO SX20-4x CTS-SX20N-P40-K9

144.612.000 ₫

Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)

Danh mục: Cisco Thẻ: Hội nghị truyền hình Hội nghị truyền hình Cisco Thiết bị hội nghị truyền hình CISCO SX20-4x CTS-SX20N-P40-K9

Mô tả

Thiết bị hội nghị truyền hình CISCO SX20-4x CTS-SX20N-P40-K9

– Bộ thiết bị bao gồm: Cisco SX20 Codec, Precision 40 Camera (CE8 software and TRC6 remote).

– Thiết bị hội nghị truyền hình CISCO SX20-4x CTS-SX20N-P40-K9 có thể chuyển đổi bất kỳ màn hình phẳng nào thành một hệ thống hội nghị truyền hình mạnh mẽ và đẹp mắt. Với Cisco SX20 Codec được thiết kế để cung cấp video độ phân giải cao (1080p) và hội thảo nhiều bên với sự linh hoạt để phù hợp với kích thước và cấu hình các loại phòng khác nhau.

– Cisco CTS-SX20N-P40-K9 hỗ trợ hỗ trợ đa điểm nhúng tùy chọn với công nghệ Cisco MultiSite, cho phép nhiều site tham gia vào cuộc gọi video.

– Chuẩn video: H.263, H.263+, H.264.

– Giao thức: H323/SIP.

Thông số kỹ thuật và tính năng

Software compatibility	– Cisco TelePresence Software Version TC 5.1 or later – Cisco Collaboration Endpoint Software Version 8.0 or later (requires Touch 10 or TRC6 remote control)
Bandwidth	H.323 and SIP up to 6 Mbps
Minimum bandwidth for resolution/frame rate	– 720p30 from 768 kbps – 720p60 from 1152 kbps – 1080p30 from 1472 kbps – 1080p60 from 2560 kbps
Firewall Traversal	– Cisco TelePresence Expressway Technology – H.460.18, H.460.19 firewall traversal
Video Standards	– H.263, H.263+, H.264
Video Features	– Native 16:9 widescreen – Advanced screen layouts – Local auto-layout
Video Inputs (Two Inputs)	One HDMI and One DVI-I (Analog and Digital); supports formats up to maximum 1920×1080 @ 60 fps (HD1080p60), including: – 640×480 – 720×480 – 720×576 – 800×600 – 848×480 – 1024×768 – 1152×864 – 1280×720 – 1280×1024 – 1280×768 – 1280×800 – 1280×960 – 1360×768 – 1366×768 – 1400×1050 – 1440×900 – 1680×1050 – 1920×1080 Extended Display Identification Data (EDID)
Video Outputs (Two Outputs)	– Two HDMI Outputs Supported Formats: + 1920 x 1080@60 fps (1080p60) + 1920 x 1080@50 fps (1080p50) + 1280 x 720@60 fps (720p60) + 1280 x 720@50 fps (720p50) + 1366 x 768@60 fps (WXGA)4 + 1360 x 768@60 fps(WXGA)4 + 1280 x 768@60 fps (WXGA)4 + 1280 x 1024@60 fps4 + 1024 x 768@60 fps4 VESA Monitor Power Management (DPM) CEC Power Management supported on HDMI output EDID – Live Video Resolutions (Encode and Decode): + 176 x 144@30, 60 fps (QCIF) (Decode only) + 352 x 288@30, 60 fps (CIF) + 512 x 288@30, 60 fps (w288p) + 576 x 448@30, 60 fps (448p) + 768 x 448@30, 60 fps (w448p) + 704 x 576@30, 60 fps (4CIF) + 1024 x 576@30, 60 fps (w576p) + 640 x 480@30, 60 fps (VGA) + 800 x 600@30, 60 fps (SVGA) + 1024 x 768@30, 60 fps (XGA) + 1280 x 768@30, 60 fps (WXGA) + 1280 x 720@30, 60 fps (HD720p) + 1920 x 1080@30, 60 fps (HD1080p)
Audio Standards	– G.711, G.722, G.722.1, G.728, G.729, AAC-LD and OPUS
Audio Features	– High quality 20 KHz stereo – Two acoustic echo cancellers – Automatic Gain Control (AGC) – Integration with third-party audio systems – Automatic noise reduction – Active lip synchronization
Audio Inputs (Four Inputs)	– Two microphones, 4-pin minijack – One minijack for line-in (stereo) – One audio in from camera (HDMI)
Audio Outputs (Two Outputs)	– One minijack for line out (stereo) – One HDMI, (digital main audio)
Dual Stream	– H.239 (H.323) dual stream – BFCP (SIP) dual stream – Support resolutions up to 1080p) at 30 frames per second
Multipoint Support	– Four-way embedded SIP/H.323 conferencing capability with MultiSite option – Ad-hoc conferencing supported through: + Unified Communications Manager Media Resource Group (requires a Cisco TelePresence MCU) + Cisco TelePresence Multiway [requires Cisco TelePresence Video Communication Server (Cisco VCS) and a Cisco TelePresence MCU]4 – Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS) – Switched conferencing (SVC)
MultiSite Features (Embedded Multipoint) (Optional upgrade)	– Adaptive SIP/H.323 MultiSite; resolution up to 720p30 + 3-way resolution up to 720p30 + 4-way resolution up to 576p30 – Full individual audio and video transcoding – Individual layouts in MultiSite continuous presence – H.323/SIP/VoIP in the same conference – Support for Presentation (H.239/BFCP) from any participant at resolutions up to 1080p15 – Best Impression (automatic continuous presence layouts) – H.264, encryption and dual stream from any site – IP downspeeding – Participants can be added by dialing in or host can dial out – Conference rates up to 6 Mbps
Protocols	– H.323 – SIP – ISDN (requires Cisco ISDN Link)
Embedded Encryption	– H.323 and SIP point-to-point – Standards-based: H.235 v3 and Advanced Encryption Standard (AES) – Automatic key generation and exchange – Supported in dual stream
IP Network Features	– DNS lookup for service configuration – Differentiated services (quality of service [QoS]) – IP-adaptive bandwidth management (including flow control) – Automatic gatekeeper discovery – Dynamic playout and lip-sync buffering – H.245 Dual Tone Multi-frequency (DTMF) tones in H.323 – RFC 4733 DTMF tones in SIP – Date and time support using Network Time Protocol (NTP) – Packet loss-based down speeding – Uniform Resource Identifier (URI) dialing – TCP/IP – DHCP – 802.1x network authentication – 802.1Q Virtual LAN – 802.1p (QoS and class of service [QoS]) – ClearPath
Cisco Unified Communications Manager (requires Cisco Unified Communications Manager Version 8.6 or later)	– Native registration with Cisco Unified Communications Manager – Basic Cisco Unified Communications Manager provisioning – Software upgrade from Cisco Unified Communications Manager -Cisco Discovery Protocol and DHCP option 150 support – Basic telephony features such as hold/resume/transfer and Corporate Directory lookup
Cisco Video Communication Server	– Recommend latest software
IPv6 Network Support	– Single call stack support for both H323 and SIP – Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ – Support for both Static and Automatic IP configuration (stateless address auto configuration)
Security Features	– Management using HTTPS and SSH – IP administration password – Menu administration password – Disable IP services – Network settings protection
Certificate management	– Certificate Authority Proxy Function (CAPF) support for additional security – Manufacturer-Installed Certificates (MIC) – Locally Significant Certificates (LSC) – X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported
Network Interfaces	One LAN and Ethernet (RJ-45) 10/100/1000 Mbit
Other Interfaces	Two USB ports can be used for serial control
System Management	– Support for the Cisco TelePresence Management Suite – Total management using embedded SNMP, Telnet, SSH, XML, SOAP – Remote software upload: using web server, secure copy (SCP), HTTP, HTTPS – Cisco Touch 10 control unit (optional) – Remote control and on-screen menu system
Directory Services	– Support for local directories (My Contacts) – Unlimited entries using server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite) – Unlimited number for corporate directory (through Cisco TelePresence Management Suite) – Received calls with date and time – Placed calls with date and time – Missed calls with date and time
Power	– Auto-sensing power supply – 100 – 240 VAC, 50/60 Hz – Maximum 40 watts for codec and main camera
Operating Temperature and Humidity	– 0°C to 40°C (32°F to 104°F) ambient temperature – 10% to 90% Relative Humidity (RH)
Storage and Transport Temperature	-20°C to 60°C (-4°F to 140°F) at RH 10% – 90% (non -condensing)
Precision 40 Camera	8x zoom (4x optical plus digital) Motorized +15°/-25°tilt, +/- 90°pan 43.5° vertical field of view 70° horizontal field of view F 1.7 1920 x 1080 pixels progressive @ 60 fps Automatic or manual focus, brightness, and white balance Far-end camera control Dual HDMI/Camera control Upside-down mounting, manual picture flip Focus distance 0.3 m – infinity
