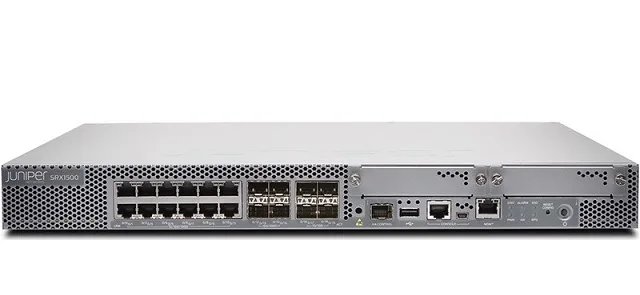

Thiết bị tường lửa Firewall JUNIPER SRX1500-SYS-JB-AC
Liên hệ báo giáThiết bị tường lửa Firewall JUNIPER SRX1500-SYS-JB-AC
– SRX1500 Services Gateway includes hardware (16GbE, 4x10GbE, 16G RAM, 16G Flash, 100G SSD, AC PSU, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
Thông số kỹ thuật và tính năng
| Model | SRX1500-SYS-JB-AC |
| Connectivity | |
| Total onboard ports | 16x1GbE and 4x10GbE |
| Onboard RJ-45 ports | 12x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 4x1GbE |
| Onboard SFP+ ports | 4x10GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Dedicated high availability (HA) ports | 1x1GbE (SFP) |
| PIM slots | 2 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 2.0 ports (type A) | 1 |
| Memory and Storage | |
| System memory (RAM) | 16GB |
| Primary boot storage (mSATA) | 16GB |
| Secondary storage (SSD | 100 GB |
| Dimensions and Power | |
| Form factor | 1U |
| Size (WxHxD) | 44.45 x 4.44 x 46.22 cm |
| Weight (device and PSU) | 7.30 kg |
| Power supply | AC (external) |
| Average power consumption | 150W |
| Average heat dissipation | 512 BTU / hour |
| Maximum current consumption | 2.5A (for AC PSU) |
| Maximum inrush current | 50A by 1 AC cycle |
| Acoustic noise level | 66.5dBA |
| Airflow/cooling | Front to back |
| Environmental | |
| Operational temperature | 0° to 40°C |
| Nonoperational temperature | -20° to 70°C |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
| Performance and Scale | |
| Routing/firewall (IMIX packet size) Gbps | 5 |
| Routing/firewall (1,518 B packet size) Gbps | 9 |
| IPsec VPN (IMIX packet size) Gbps | 1.3 |
| IPsec VPN (1400 B packet size) in Gbps | 4.5 |
| Application visibility and control in Gbps | 7 |
| Recommended IPS in Gbps | 4 |
| Next-generation firewall in Gbps | 1.7 |
| Route table size (RIB/FIB) (IPv4) | 2 million / 1 million |
| Maximum concurrent sessions (IPv4 or IPv6) | 2,000,000 |
| Maximum security policies | 16 |
| Connections per second | 90 |
| NAT rules | 8 |
| Media access control (MAC) table size | 64,000 (standalone mode) |
– Bảo hành: 12 tháng.
