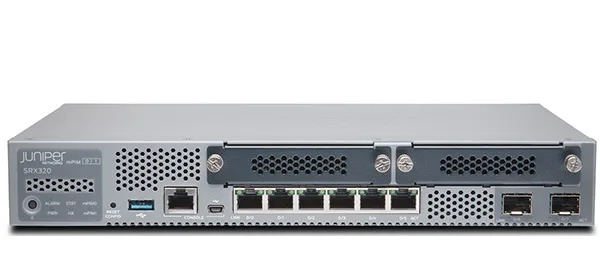

Thiết bị tường lửa Firewall JUNIPER SRX320-SYS-JB-P
Liên hệ báo giáThiết bị tường lửa Firewall JUNIPER SRX320-SYS-JB-P
– SRX320 Services Gateway includes hardware (8GE, 6-port POE+, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching).
– RMK not included.
Thông số kỹ thuật và tính năng
| Model | SRX320-SYS-JB-P |
| Connectivity | |
| Total onboard ports | 8x1GbE |
| Onboard RJ-45 ports | 6x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 2x1GbE |
| MACsec-capable ports | 2x1GbE |
| Out-of-band (OOB) management ports | 0 |
| Mini PIM (WAN) slots | 2 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| PoE+ ports | 6 |
| Memory and Storage | |
| System memory (RAM) | 4GB |
| Storage | 8GB |
| SSD slots | 0 |
| Dimensions and Power | |
| Form factor | Desktop |
| Size (WxHxD) | 29.99 x 4.39 x 19.10 cm |
| Weight | 1.51 kg |
| Redundant PSU | No |
| Power supply | AC (external) |
| Maximum PoE power | 180W |
| Average power consumption | 221W |
| Average heat dissipation | 755 BTU/h |
| Maximum current consumption | 2.755A |
| Acoustic noise level | 40dBA |
| Airflow/cooling | Front to back |
| Environmental | |
| Operational temperature | 0° to 40°C |
| Nonoperational temperature | -20° to 70°C |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
– Bảo hành: 12 tháng.
