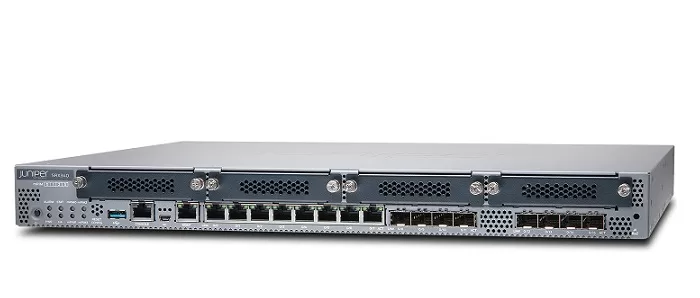

Thiết bị tường lửa Firewall JUNIPER SRX345-SYS-JB-2AC
Liên hệ báo giáThiết bị tường lửa Firewall JUNIPER SRX345-SYS-JB-2AC
– SRX345 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, dual AC power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching).
Thông số kỹ thuật và tính năng
| Model | SRX345-SYS-JB-2AC |
| Connectivity | |
| Total onboard ports | 16x1GbE |
| Onboard RJ-45 ports | 8x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 8x1GbE |
| MACsec-capable ports | 16x1GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Mini PIM (WAN) slots | 4 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| PoE+ ports | 0 |
| Memory and Storage | |
| System memory (RAM) | 4GB |
| Storage | 8GB |
| SSD slots | 1 |
| Dimensions and Power | |
| Form factor | 1U |
| Size (WxHxD) | 44.09 x 4.36 x 47.5 cm |
| Weight | 4.9kg |
| Redundant PSU | No |
| Power supply | Dual AC |
| Average power consumption | 122W |
| Average heat dissipation | 420 BTU/h |
| Maximum current consumption | 1.496 A |
| Acoustic noise level | 45.5 dBA |
| Airflow/cooling | Front to back |
| Environmental | |
| Operational temperature | 0° to 40°C |
| Nonoperational temperature | -20° to 70°C |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
– Bảo hành: 12 tháng.
