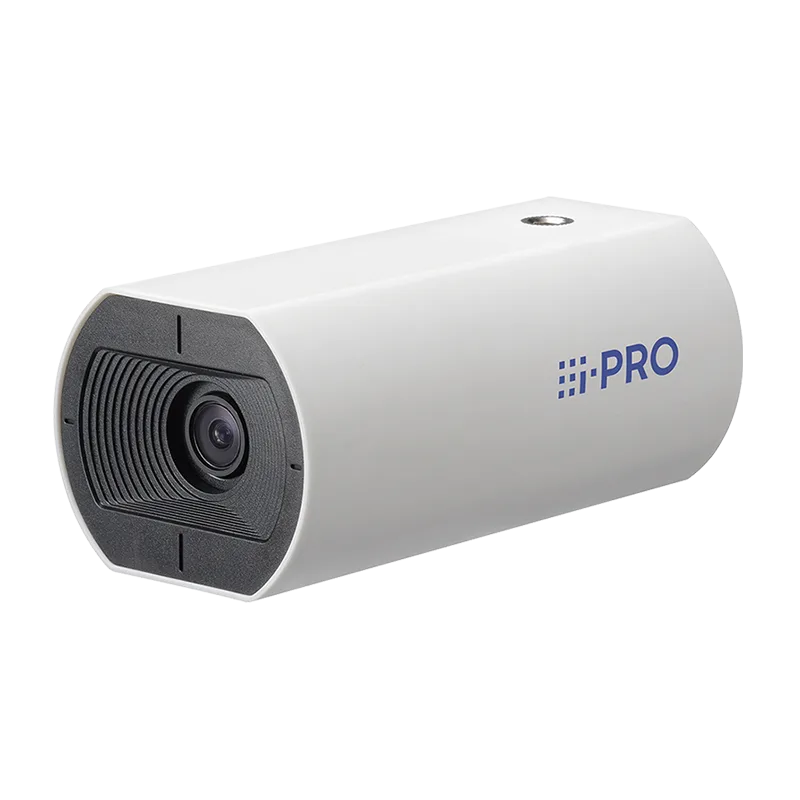

WV-U1130A
Liên hệ báo giá New U-series compact network camera with enhanced functions and affordability
Camera
| COMPONENT | SPECIFICATION |
|---|---|
| Image Sensor | Approx. 1/3 type CMOS image sensor |
| Minimum Illumination | Color : 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) Color : 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | ATW1/ ATW2/ AWC |
| Maximum shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s |
| Intelligent Auto | On / Off |
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.120 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31. (only when Super dynamic / Intelligent Auto: Off) |
| Fog Compensation | On / Off (only when Intelligent auto / auto contrast adjust: Off) |
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On / Off, 4 areas available |
| Scene Change Detection (SCD) | On / Off, 1 areas available |
| Privacy Zone | On / Off, Up to 8 zones available |
| VIQS | On/ Off, Up to 8 zones available |
| Image Rotation | 0 ° (Off) / 90 °/ 180 ° (Upside-down)/ 270 ° |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
Lens
| COMPONENT | SPECIFICATION |
|---|---|
| Focal length | 3.2 mm{1/8 inches} |
| Optical zoom | 1x |
| Extra zoom | 1.0x – 1.5x(when resolution is 1280×720) |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Angular Field of View | [16 : 9 mode] Horizontal : 100°, Vertical : 54° [ 4 : 3 mode] Horizontal : 73°, Vertical : 54° |
| Maximum Aperture Ratio | 1 : 2.0 |
| Focus range | 1 m {39-3/8 inches} – ∞ |
DORI
| COMPONENT | SPECIFICATION |
|---|---|
| Detect (25ppm / 8ppf) | 36.2 m / 118.7 ft |
| Observe (62.5ppm / 19ppf) | 14.5 m / 47.5 ft |
| Recognize (125ppm / 38ppf) | 7.2 m / 23.7 ft |
| Identify (250ppm / 76ppf) | 3.6 m / 11.9 ft |
Browser GUI
| COMPONENT | SPECIFICATION |
|---|---|
| Camera Control | Brightness |
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network
| COMPONENT | SPECIFICATION |
|---|---|
| Network IF | 10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/H.264 |
[16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180 [ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA |
| H.265/ H.264 |
[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port(AUTO) / Unicast port(MANUAL) / Multicast [Max. frame rate for each stream] Stream(1) : 1920×1080(30fps) / 1280×720(30fps) / 1600×1200(30fps) Stream(2) : 640×360(30fps) / 1280×720(30fps) / 640×480(30fps) Stream(3) : Off / Off / Off JPEG(1) : 1920×1080(1fps) / 1920×1080(1fps) / 1600×1200(1fps) JPEG(2) : 1280×720(1fps) / 1280×720(1fps) / 1280×960(1fps) |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off *Frame rate control and Advanced are only available with H.265. AUTO VIQS: On/ Off |
| Audio Compression | — |
| Audio Transmission Mode | — |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| Secure | Device Certificate GlobalSign® pre-installed, User authentication,Host authentication, HTTPS, 802.1X Support, Data encryption |
| SDXC/SDHC/SD Memory Card | H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals |
| ONVIF® Profile | G / S / T |
Alarm
| COMPONENT | SPECIFICATION |
|---|---|
| Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output |
Input/Output
| COMPONENT | SPECIFICATION |
|---|---|
| Audio input | – |
| Audio Output | – |
| External I/O Terminals | – |
| Monitor Output | – |
General
| COMPONENT | SPECIFICATION |
|---|---|
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035 |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 80 mA, Approx. 3.8 W (Class 2 device) |
| Ambient Operating Temperature | -10 °C to +50 °C (+14 °F to +122 °F) {Power On range: 0 °C to +50 °C (+32°F to +122 °F)} |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Dimensions *Installing using the base bracket |
59 mm (W) x 49 mm (H) x 116 mm (D) {2-5/16 inches (W) x 1-15/16 inches (H) x 4-9/16 inches (D)} (excluding side cover) |
| Mass (approx.) | 150 g {0.33 lbs.} |
| Finish | Main body : PC / ABS resin, i-PRO white |
NOTES
Important
– Safety Precautions : Carefully read the Basic Information,Installation Guide and Operating Instructions before using this product.
– i-PRO Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers’ products used on the network.
– Masses and dimensions are approximate.
– Specifications are subject to change without notice.
Trademarks and registered trademarks
– iPad and iPhone are trademarks of Apple Inc., registered in the U.S.and other countries. – Android is a trademark of Google LLC.
– ONVIF is a trademark of ONVIF, Inc.
– All other trademarks identified herein are the property of their respective owners
©i-PRO Co., Ltd All rights reserved / November 2022
