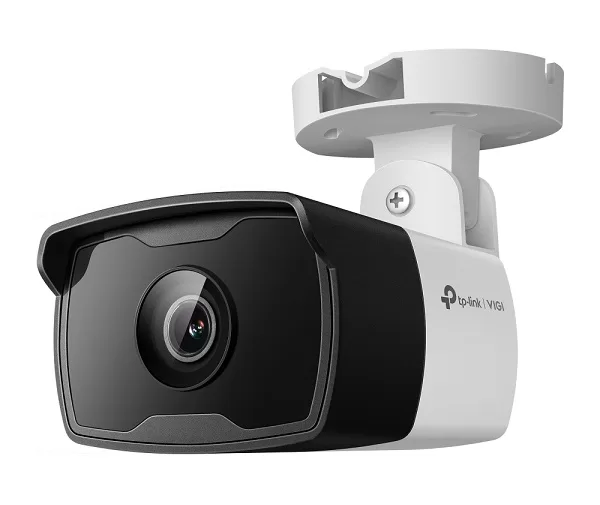

Camera IP hồng ngoại 3.0 Megapixel TP-LINK VIGI C330I (4mm)
655.500 ₫
Camera IP hồng ngoại 3.0 Megapixel TP-LINK VIGI C330I (4mm)
– 3MP Super-High Definition: The VIGI C330I camera comes with 3MP — more than enough pixels to pick up some of the more discrete details.
– Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
– Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
– Smart Video Enhancement: VIGI’ s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
– H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
– Waterproof: Reliable IP67 for stable outdoor performance.
– PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
– Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Thông số kỹ thuật và tính năng
CAMERA | |
Cảm biến hình ảnh | 1/2.8” Progressive Scan CMOS |
Tốc độ màn trập | 1/3 to 1/10000 s |
Phơi sáng | Yes |
Nhạy sáng tối thiểu | Color: 0.01 Lux; 0 Lux with IR light |
Cơ chế Ngày/Đêm | IR Cut Filter |
Chuyển đổi Ngày/Đêm | Day/Night/Auto/Schedule-Switch |
ỐNG KÍNH | |
Loại | Fixed Focal Lens |
Độ dài tiêu cự | 4mm |
Khẩu độ | 4mm: F2.0 |
FOV | 4mm: Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3° |
Ngàm ống kính | M12 |
VIDEO | |
Độ phân giải tối đa | 2304 × 1296 |
Luồng chính | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720 |
Luồng phụ | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704×576, 640×480, 352×288, 320×240 |
Kiểm soát Bit Rate | CBR, VBR |
Nén video | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
Loại H.264 | Main Profile/High Profile |
H.264+ | Main Stream Supported |
Loại H.265 | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
ĐÈN CHIẾU SÁNG | |
Đèn hồng ngoại IR | Quantity: 2 Range: 30m Wavelength: 850nm |
Điều khiển bật/tắt đèn chiếu sáng | Auto/Scheduled/Always on/Always off |
ĐIỀU CHỈNH GÓC (THỦ CÔNG) | |
Vùng | Pan: -90° to 90° Tilt: -90° to 90° |
HÌNH ẢNH | |
Cài đặt hình ảnh | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
Tăng cường hình ảnh | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | DWDR |
SNR | ≥ 52 dB |
Chuyển đổi thông số hình ảnh | Yes |
Vùng riêng tư | Up to 4 Masks |
ROI | 1 Region |
Cài đặt OSD | Yes |
MẠNG | |
Bảo mật | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Lưu trữ mạng | NAS (NFS, SMB/ CIFS) |
Giao thức | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
Xem trực tiếp đồng thời | 3 Main Streams & 3 Sub-Streams |
Kết nối và điều khiển | VIGI App, VIGI Security Manager, VIGI NVR, Web |
Cloud | Yes |
ONVIF | Yes |
GIAO DIỆN KẾT NỐI | |
Kết nối mạng | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Nguồn | DC Power Port |
QUẢN LÝ SỰ KIỆN VÀ BÁO ĐỘNG | |
Sự kiện thông minh | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
Alarm Linkage | Message Push |
Output Notification | Message Push |
THÔNG TIN CHUNG | |
Nhiệt Độ Hoạt Động | -30~60 °C |
Storage Temperature | -40~60 °C |
Storage Humidity | 95% or Less (Non-Condensing) |
Độ Ẩm Hoạt Động | 95% or Less (Non-Condensing) |
Material | Plastic |
Khối lượng tịnh | 0.2 Kg |
Trọng lượng | 0.35 Kg |
Power Consumption | Maximum: 5 W Typical (Day Mode): 1.32 W Typical (Night Mode with IR LED): 2.68 W |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
Protection | IP67 |
Dimensions (L x W x H) | 174 × 74 × 71 mm |
– Bảo hành: 24 tháng.
