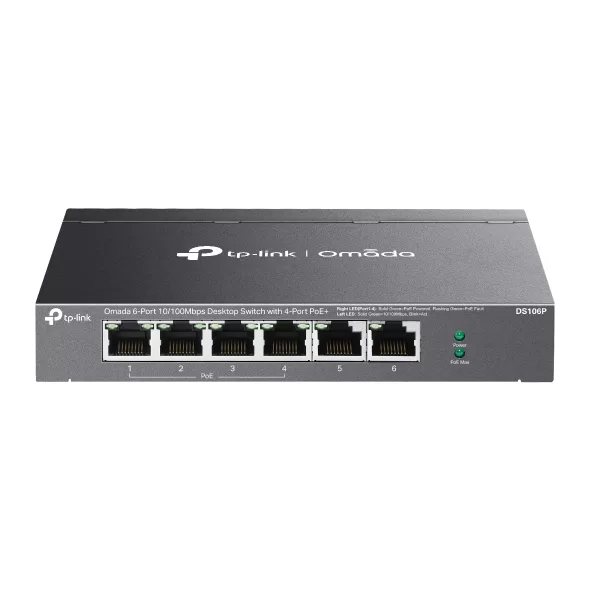

DS106P

Danh mục: Switch Thẻ: DS106P Unmanaged

Mô tả

6× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 67 W for all PoE ports*
Up to 250m (820ft) data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Plug and Play. No configuration or central management required.^†

Specifications

HARDWARE FEATURES
Interface	• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)• AUTO Negotiation• AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate	0.8928 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–4• Power Supply: 67 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1.2 Gbps
Dimensions ( W x D x H )	6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption	• 2.52 W (220 V / 50 Hz, no PD connected)• 75.4 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation	• 8.59 BTU/h(no PD connected)• 257.11 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode: Ports 1–4• Priority Mode: Ports 1–2• PoE Auto Recovery: Ports 1-4• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• DS106P• Power Adapter• Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
