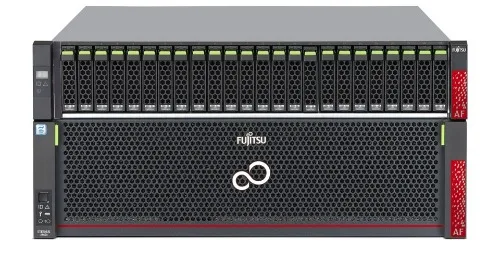

FUJITSU Storage ETERNUS AF650 S3 – All-Flash Array
Liên hệ báo giá
Controllers: 2
No. of host interfaces: 8 ports [FC(32Gbit/s,16Gbit/s)], 8 ports [iSCSI(10Gbit/s,1Gbit/s)]
System Memory: 768 GB
Disk Drives: 10 x 7.68TB
Max. no. of drive enclosures: 43
Supported RAID levels: 0, 1, 1+0, 5, 5+0, 6
Drive Type: 2.5-inch, SSD (30.72TB / 15.36TB / 7.68TB / 3.84TB / 1.92TB / 960GB)
2.5-inch, SSD (FIPS) (7.68TB / 3.84TB…
No. of host interfaces: 8 ports [FC(32Gbit/s,16Gbit/s)], 8 ports [iSCSI(10Gbit/s,1Gbit/s)]
System Memory: 768 GB
Disk Drives: 10 x 7.68TB
Max. no. of drive enclosures: 43
Supported RAID levels: 0, 1, 1+0, 5, 5+0, 6
Drive Type: 2.5-inch, SSD (30.72TB / 15.36TB / 7.68TB / 3.84TB / 1.92TB / 960GB)
2.5-inch, SSD (FIPS) (7.68TB / 3.84TB…
Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)
Mô tả
Controllers: 2
No. of host interfaces: 8 ports [FC(32Gbit/s,16Gbit/s)], 8 ports [iSCSI(10Gbit/s,1Gbit/s)]
System Memory: 768 GB
Disk Drives: 10 x 7.68TB
Max. no. of drive enclosures: 43
Supported RAID levels: 0, 1, 1+0, 5, 5+0, 6
Drive Type: 2.5-inch, SSD (30.72TB / 15.36TB / 7.68TB / 3.84TB / 1.92TB / 960GB)
2.5-inch, SSD (FIPS) (7.68TB / 3.84TB / 1.92TB)
Drive interface: Serial Attached SCSI (12 Gbit/s)
Back-end disk connectivity: 4 pairs of four-lane x 12 Gbit/s Serial Attached SCSI buses (SAS 3.0 wide)
Max. no. of RAID groups per system: 528
Max. no. of LUNs per RAID group: 128
Max. no. of LUNs: 12,288
Max. LUN capacity: 128 TB
Deduplication: Yes
Compression: Yes
Performance:
Latency: 140μsec (Read), 60μsec (Write)
Sequential access performance: 22,000 MB/s (128KB Read), 11,000 MB/s (128KB Write)
Random access performance: 920,000 IOPS (8KB Read), 670,000 IOPS (8KB Write)
Operation Management Server:
Microsoft® Windows Server® 2019
Microsoft® Windows Server® 2016
Microsoft Windows Server 2012, 2012 R2
Solaris® 11 (11/11 or later)
Solaris® 10 (except ETERNUS SF Express)
Red Hat Enterprise Linux 8
Red Hat® Enterprise Linux® 7
Red Hat® Enterprise Linux® 6
Oracle Linux 6
VMware® vSphere® 6.0, 6.5, 6.7
Microsoft Windows Server 2019 Hyper-V
Microsoft Windows Server 2016 Hyper-V
Microsoft Windows Server 2012 Hyper-V, 2012 R2 Hyper-V
Operation Management Client:
Microsoft Internet Explorer 10, 11
Firefox ESR 60, ESR 68
Microsoft Edge 25, 42, 44
Google Chrome 60, 75
Chrome® 47, 50 (Android®)
Safari 8, 9 (iOS)
Maximum Power Consumption:
AC 200 – 240 V: 19,830W (20,280VA)
Dimensions (W x D x H): 482 x 805 x 133 mm, 3 U
Weight: 54 kg (119 lb)
Warranty: 3 years
