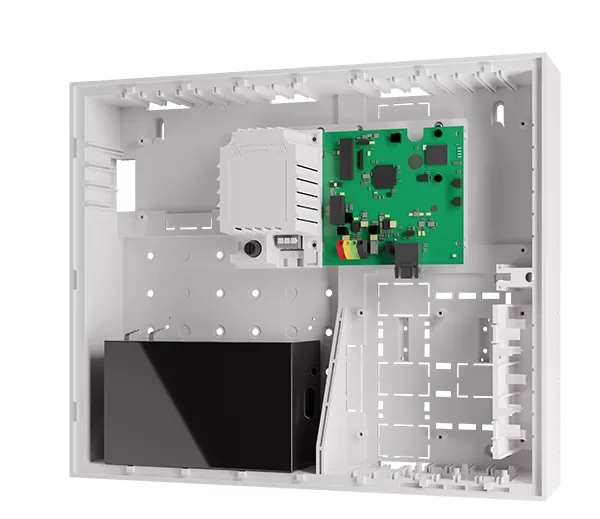

GSM Control Panel With LAN Communicator JABLOTRON JA-103K-7AH

– The JA-103K-7Ah control panel offers: 50 wireless or bus devices, 50 users, 8 sections, 32 programmable PG outputs, 20 mutually independent calendar events, 8 user SMS and voice reports, 5 ARCs can be set, 5 selectable protocols for an ARC.

– The control panel has: 1 terminal board for bus connection, 1 connector for a built-in radio module (JA-111R) and 1 connector for a GSM/GPRS communicator (JA-192Y).

– The control panel also offers functions such as: Maintenance, Day/night mode, Short departure response, Automatic setting, Advanced calendar features.

Technical specifications

Control panel power supply	~ 110 – 230 V/50 – 60 Hz, max. 0.28 A with fuse F1.6 A/250 V, Protection class II
Back-up battery	12 V; 7 Ah (lead gel)
Maximum battery charging time	48 h
BUS voltage (red – black)	12.0 to 13.8 V
Maximum continuous current consumption from the control panel	1000 mA
Max. continuous current consumption for back-up 12 hours	– Without GSM communicator LAN – OFF: 334 mA LAN – ON: 300 mA – With GSM communicator LAN – OFF: 302 mA LAN – ON: 270 mA
Max. continuous current consumption for back-up 24 hours	– Without GSM communicator LAN – OFF: 160 mA LAN – ON: 125 mA – With GSM communicator LAN – OFF: 128 mA LAN – ON: 110 mA
Maximum number of devices	50
LAN communicato	Ethernet interface, 10/100BASE
Dimensions	357 x 297 x 105 mm
Weight with/without AKU	3755/ 1665 g
Reaction to invalid code entry	Alarm after 10 wrong code entries
Event memory	Approx. 7 million latest events, including date and time
Power supply unit	Type A according to EN 50131-6 T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC.
GSM communicator (2G)	850 / 900 / 1800 / 1900 MHz
Classification	Security grade 2 according to EN 50131-1
Operational environment	Environmental class II (indoor general) according to EN 50131-1
Operational temperature range	-10 °C to +40 °C
Average operational humidity	75 % RH, non-condensing
Complies with	EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10, EN 50136-1, EN 50136-2, EN 50581
Radio operating frequency (with the JA 11xR module)	868.1 MHz
Radio emissions	ETSI EN 300 220-1,-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM)
EMC	EN 50130-4 ed. 2+A1, EN 55032 ed. 2, ETSI EN 301 489-7
Safety conformity	EN 62368-1+A11
Caller identification (CLIP)	ETSI EN 300 089
Operational conditions	ERC REC 70-03
Certification body	Trezor Test s.r.o. (no. 3025)

– Bảo hành: 5 năm.
