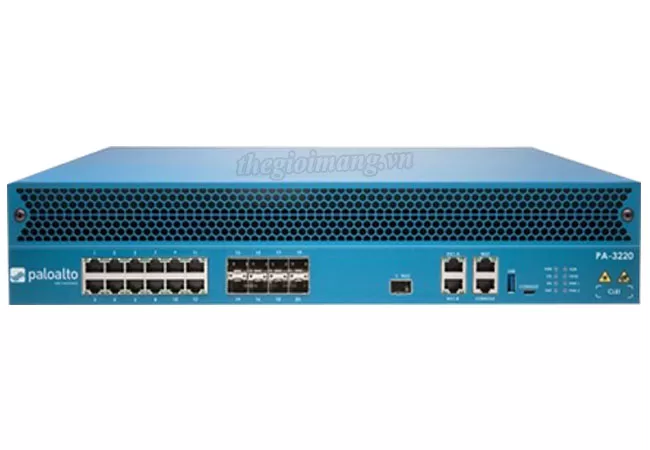

Palo Alto PA-3220 (PAN-PA-3220)
Liên hệ báo giáThiết bị tường lửa Palo Alto Networks PA-3220 (PAN-PA-3220)
- 10/100/1000 (12), 1G SFP (4), 1G/10G SFP/SFP+ (4)
- 10/100/1000 out-of-band management port (1), 10/100/1000 HA (2), 10G SFP+ HA (1), RJ-45 console port (1), Micro USB (1)
- Redundant 650-watt AC or DC (195/240)
- Firewall throughput: 4.4 Gbps
- IPsec VPN throughput: 2.5 Gbps
- Max sessions: 1M (48000 per sec.)
- Virtual systems (base/max): 1/6
Thiết bị tường lửa Palo Alto Networks PA-3220
SKU | PAN-PA-3220 |
---|---|
Performance and Capacities | |
Firewall throughput (HTTP/appmix) | 3.9/4.4 Gbps |
Threat Prevention throughput (HTTP/appmix) | 1.9/2.3 Gbps |
IPsec VPN throughput | 2.5 Gbps |
Max sessions | 1M |
New sessions per second | 48,000 |
Virtual systems (base/max) | 1/6 |
Hardware Specifications | |
I/O | 10/100/1000 (12), 1G SFP (4), 1G/10G SFP/SFP+ (4) |
Management I/O | 10/100/1000 out-of-band management port (1) 10/100/1000 high availability (2) 10G SFP+ high availability (1) RJ-45 console port (1) Micro USB (1) |
Storage Capacity | 240 GB SSD |
Power Supply (Avg/Max Power Consumption) | Redundant 650-watt AC or DC (195 / 240) |
Max BTU/hr | 819 |
Input Voltage (Input Frequency) | AC: 100–240 VAC (50/60Hz) DC: -48 V @ 4.7 A, -60 V @ 3.8 A |
Max Current Consumption | AC: 2.3 A @ 100 VAC, 1.0 A @ 240 VAC DC: -48 V @ 4.7 A, -60 V @ 3.8 A |
Mean Time Between Failure (MTBF) | 14 years |
Rack Mount Dimensions | 2U, 19” standard rack (3.5” H x 20.53” D x 17.34″ W) |
Weight (Standalone Device/As Shipped) | 29 lbs / 41.5 lbs |
Safety | cTUVus, CB |
EMI | FCC Class A, CE Class A, VCCI Class A |
Environment | Operating temperature: 32° to 122° F, 0° to 50° C Non-operating temperature: -4° to 158° F, -20° to 70° C Humidity tolerance: 10% to 90% Maximum altitude: 10,000 ft / 3,048 m Airflow: front to back |
Networking Features | |
---|---|
Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 |
SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC |
IPsec VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP |
Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
High Availability | Modes: active/active, active/passive, HA clustering Failure detection: path monitoring, interface monitoring |
Zero Touch Provisioning (ZTP) | Available with -ZTP SKUs (PA-3220-ZTP) Requires Panorama 9.1.3 or higher |
Data sheet Palo Alto Networks PA-3200 Series
PA-3200 Series Hardware | |
---|---|
Palo Alto Networks PA-3220 with redundant AC power supplies | #PAN-PA-3220 |
Subscription | |
DNS Security subscription year 1, PA-3220 | #PAN-PA-3220-DNS |
GlobalProtect subscription year 1, PA-3220 | #PAN-PA-3220-GP |
Threat prevention subscription year 1, PA-3220 | #PAN-PA-3220-TP |
PANDB URL filtering subscription year 1, PA-3220 | #PAN-PA-3220-URL4 |
Premium support year 1, PA-3220 | #PAN-SVC-PREM-3220 |
Extends native protection across all attack vectors with cloud-delivered security subscriptions
- Threat Prevention—inspects all traffic to automatically block known vulnerabilities, malware, vulnerability ex-ploits, spyware, command and control (C2), and custom intrusion prevention system (IPS) signatures.
- WildFire® malware prevention—unifies inline machine learning protection with robust cloud-based analysis to instantly prevent new threats in real time as well as dis-cover and remediate evasive threats faster than ever
- URL Filtering—prevents access to malicious sites and protects users against web-based threats, including cre-dential phishing attacks.
- DNS Security—detects and blocks known and unknown threats over DNS (including data exfiltration via DNS tun-neling), prevents attackers from bypassing security mea-sures, and eliminates the need for independent tools or changes to DNS routing.
- IoT Security—discovers all unmanaged devices in your network quickly and accurately with ML, without the need to deploy additional sensors. Identifies risks and vul-nerabilities, prevents known and unknown threats, pro-vides risk-based policy recommendations, and automates enforcement.
