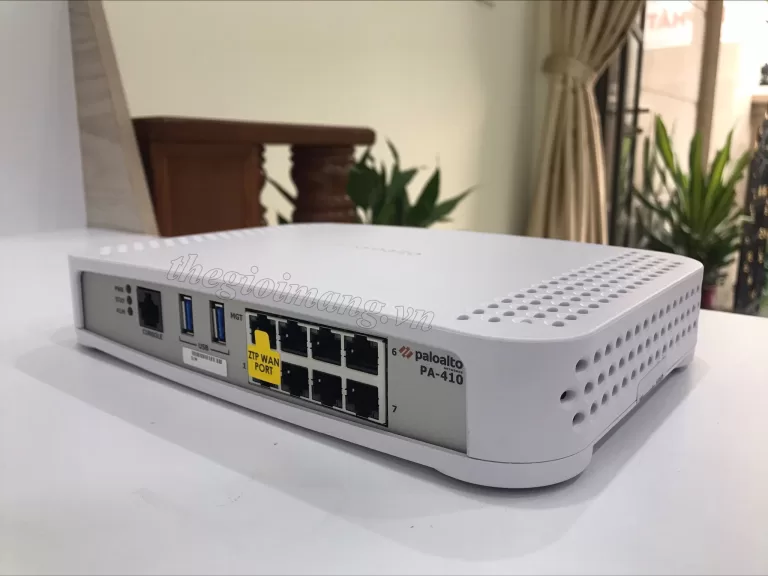

Palo Alto PA-410 (PAN-PA-410)
Liên hệ báo giáThiết bị tường lửa Palo Alto Networks PA-410 (PAN-PA-410)
- 7 x 10/100/1000 Mbps RJ-45 ports
- 10/100/1000 out-of-band management port (1), RJ45 console port (1), USB port (2)
- Storage Capacity: 64 GB eMMC
- 1.6 Gbps firewall throughput (HTTP/appmix)
- 0.685 Gbps Gbps IPsec VPN throughput
- 64,000 Max sessions
- 12,000 New sessions per second.
Thiết bị tường lửa Palo Alto Networks PA-410
SKU | PAN-PA-410 |
---|---|
Performance and Capacities | |
Firewall throughput (HTTP/appmix) | 1.6/1.2 Gbps |
Threat Prevention throughput (HTTP/appmix) | 0.6/0.685 Gbps |
IPsec VPN throughput | 0.93 Gbps |
Max sessions | 64,000 |
New sessions per second | 12,000 |
Hardware Specifications | |
I/O | 10/100/1000 (7) RJ45 |
Management I/O | 10/100/1000 out-of-band management port (1) RJ45 console port (1) USB port (2) |
Storage Capacity | 64 GB eMMC |
Power Supply (Avg/Max Power Consumption) | 17/18 W |
Max BTU/hr | 78 |
Input Voltage (Input Frequency) | 100–240 VAC (50–60Hz) |
Max Current Consumption | 1.5 A @ 12 VDC |
Max Inrush Current | 2.1 A |
Dimensions | 1.63” H x 6.42” D x 9.53” W |
Weight (Standalone Device/As Shipped) | 3.1 lbs / 5.9 lbs |
Safety | cTUVus, CB |
EMI | FCC Class B, CE Class B, VCCI Class B |
Environment | Operating temperature: 32° to 104° F, 0° to 40° C Non-operating temperature: -4° to 158° F, -20° to 70° C Passive cooling |
PA-400 Series Networking Features | |
---|---|
Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 |
SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC |
IPsec VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 |
Data sheet Palo Alto Networks PA-400 Series
PA-400 Series Hardware | |
---|---|
Palo Alto Networks PA-410 | #PAN-PA-410 |
PA-410 – Bundle Subscriptions for 36 months | |
PA-410, Threat prevention subscription, 3 years (36 months), term | #PAN-PA-410-TP-3YR |
PA-410, PAN-DB URL Filtering subscription, 3 years (36 months), term. | #PAN-PA-410-URL4-3YR |
PA-410, WildFire subscription, 3 years (36 months), term. | #PAN-PA-410-WF-3YR |
PA-410, DNS security subscription, 3 years (36 months), term. | #PAN-PA-410-DNS-3YR |
PA-410, IoT subscription, 3 years (36 months), term. | #PAN-PA-410-IOT-3YR |
PA-410, DLP subscription, 3 years (36 months), term. | #PAN-PA-410-DLP-3YR |
SaaS Inline subscription, 3-year prepaid, PA-410 | #PAN-PA-410-SAAS-INLINE-3YR |
Extends native protection across all attack vectors with cloud-delivered security subscriptions
- Threat Prevention — goes beyond a traditional intrusion prevention system (IPS) to prevent all known threats across all traffic in a single pass without sacrificing performance.
- Advanced URL Filtering — provides best-in-class web protection while maximizing operational efficiency with the industry’s first real-time web protection engine and industry-leading phishing protection.
- WildFire® — ensures files are safe with automatic detection and prevention of unknown malware powered by industry-leading cloud-based analysis and crowdsourced intelligence from more than 42,000 customers.
- DNS Security — harnesses the power of ML to detect as well as prevent threats over DNS in real time and empowers security personnel with the intelligence and context to craft policies and respond to threats quickly and effectively.
- IoT Security — provides the industry’s most comprehensive IoT security solution, delivering ML-powered visibility, prevention, and enforcement in a single platform.
- Enterprise DLP — offers the industry’s first cloud-delivered enterprise DLP that consistently pro-tects sensitive data across networks, clouds, and users.
- SaaS Security — delivers integrated SaaS security that lets you see and secure new SaaS applica-tions, protect data, and prevent zero-day threats at the lowest total cost of ownership (TCO).
