THÔNG TIN SẢN PHẨM
Chi tiết và thông số kỹ thuật

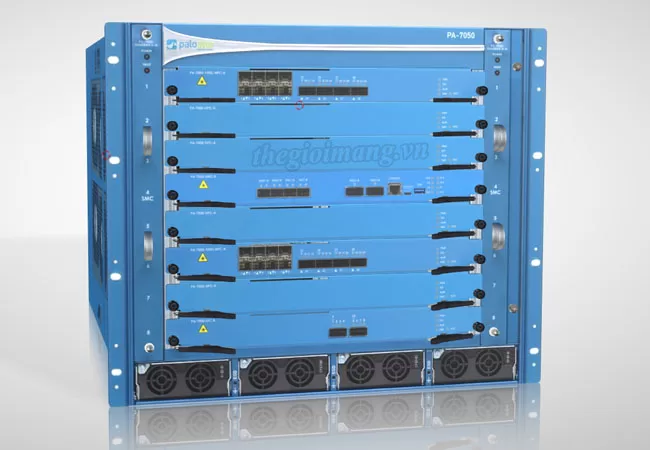

Thiết bị tường lửa Firewall Palo Alto PA-7050
| Performance and Capacities | ||||
| Model & Line Cards | PA-7050 | PA-7000 DPC-A | PA-7000-100G-NPC-A | |
| Firewall throughput (HTTP/appmix) | 336.8 / 384.8 Gbps | 67.2/76.8 Gbps | 50.6/57.8 Gbps | |
| Threat Prevention throughput (HTTP/appmix) | 188.8 / 226.2 Gbps | 34.3/43 Gbps | 25.8/32.4 Gbps | |
| IPsec VPN throughput | 192.2 Gbps | 34.9Gbps | 26.3 Gbps | |
| Max sessions | 245M | 43M | 32M | |
| New sessions per second | 4M | 775,000 | 585,000 | |
| Virtual systems (base/max) | 25/225 | – | ||
| Hardware Specifications | ||||
| PA-7000 NPC | PA-7050 Full System | |||
| PA-7000-100G-NPC-A | SFP/SFP+ (8), QSFP+/QSFP28 (4) | SFP/SFP+ (48), QSFP+/QSFP28 (24) | ||
| PA-7050-SMC-B | – | SFP MGT (2), SFP HA1 (2), HSCI HA2/HA3 QSFP+/QSFP28 (2), RJ45 serial console (1), Micro USB serial console (1) | ||
| PA-7000-LFC-A | – | 480 GB SSD, system drive RAID1 (2 x 240 GB) | ||
| AC input voltage | – | 100–240 VAC (50–60 Hz) | ||
| Rated input current | – | 27-12A | ||
| AC power supply output | – | 2500 W @ 240 VAC 1200 W @ 120 VAC |
||
| DC input voltage | – | -40 to -60 VDC | ||
| Rated input current | – | 60A | ||
| DC power output | – | 2500 W / power supply | ||
| Max current / power supply | – | 16 A @ 180 VAC In 75 A @ 37.5 VDC In |
||
| Power supplies (base/max) | – | 4/4 | ||
| Max inrush current / power supply | – | 50 AAC / 75 ADC peak | ||
| Mean time between failure (MTBF) | Configuration dependent; contact your Palo Alto Networks representative for MTBF details | |||
| Max BTU/hr | – | 10,236 | ||
| Rack mount (dimensions) | – | 9U, 19” standard rack (15.75” H x 19” W x 24” D) |
||
| Weight (standalone device/ as shipped) | – | 187.4 lbs. AC / 185 lbs. DC | ||
| Safety | cTUVus, CB | |||
| EMI | FCC Class A, CE Class A, VCCI Class A | |||
| Certifications | NEBS Level 3 | |||
| Environment | ||||
| Operating temperature | – | 32° to 122° F, 0° to 50° C | ||
| Non-operating temperature | – | -4° to 158° F, -20° to 70° C | ||
