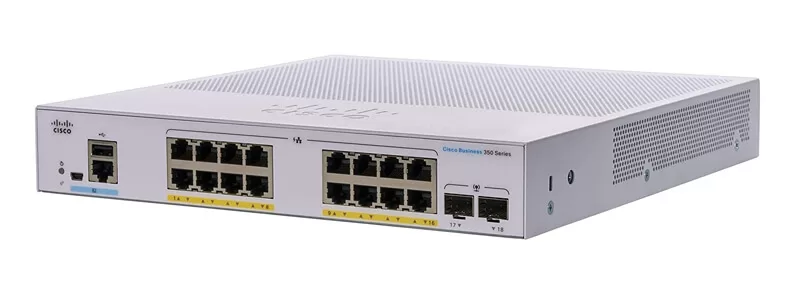

Switch CISCO CBS350-16P-E-2G-EU

15.690.000 ₫

Mô tả

Support 16 10/100/1000 PoE+ ports with 120W power budget and 2 Gigabit SFP ports.
Switching Capacity: 36Gbps.
Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.
MAC table: 16K addresses.
Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.
Flash: 256 MB.
CPU: 800MHz ARM.
DRAM: 512MB.
Dimensions (W x D x H): 268 x 210 x 44 mm.
Weight: 1.42kg.
Bảo hành: 12 tháng.

Thông số kỹ thuật

Model	CBS350-16P-E-2G-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets)	26.78 mpps
Switching capacity	36.0Gbps
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	16K addresses
Hardware
Total System Ports	18 x Gigabit Ethernet
RJ-45 Ports	16 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP])	2 x SFP
Number of Ports That Support PoE	16
Power Dedicated to PoE	120W
Console port	Cisco standard mini USB Type-B/RJ45 console port
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Packet buffer	1.5 MB
Power consumption (worst case)
System Power Consumption	110V=23.65W 220V=23.68W
Power Consumption (with PoE)	110V=150.1W 220V=148.8W
Heat Dissipation (BTU/hr)	512.16
Environmental
Unit dimensions (W x D x H)	268 x 210 x 44 mm
Unit weight	1.42 kg
Power	100-240V, 50-60 Hz, external
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	-5° to 50°C
Storage temperature	-25° to 70°C
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN (Number)	Fanless
MTBF at 25°C (hours)	706,983
