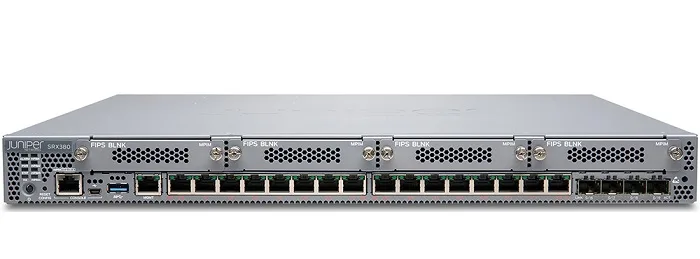

Thiết bị tường lửa Firewall JUNIPER SRX380-P-SYS-JB-AC
Liên hệ báo giáThiết bị tường lửa Firewall JUNIPER SRX380-P-SYS-JB-AC
– SRX380 Services Gateway includes hardware (16GbE PoE+, 4x10GbE, 4x MPIM slots, 4GB RAM, 100GB SSD, single AC power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
Thông số kỹ thuật và tính năng
| Model | SRX380-P-SYS-JB-AC |
| Connectivity | |
| Total onboard ports | 20 (16x1GbE, 4x10GbE) |
| Onboard RJ-45 ports | 16x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 4x10GbE SFP+ |
| MACsec-capable ports | 16x1GbE 4x10GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Mini PIM (WAN) slots | 4 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| PoE+ ports | 16 |
| Memory and Storage | |
| System memory (RAM) | 4GB |
| Storage | 100GB SSD |
| SSD slots | 1 |
| Dimensions and Power | |
| Form factor | 1U |
| Size (WxHxD) | 44.09 x 4.37 x 47.5 cm |
| Weight | 6.8 kg |
| Redundant PSU | Yes |
| Power supply | 1+1 hot-swappable AC PSU |
| Maximum PoE power | 480W |
| Average power consumption | 150 W (without PoE) 510 W (with PoE) |
| Average heat dissipation | 511.5 BTU/hr (without PoE) |
| Maximum current consumption | 1.79A/7.32A |
| Acoustic noise level | < 50dBA @ room temperature 27°C |
| Airflow/cooling | Front to back |
| Environmental | |
| Operational temperature | 0° to 40°C with MPIMs 0° to 50° C without MPIMs |
| Nonoperational temperature | -20° to 70°C |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
– Bảo hành: 12 tháng.
