THÔNG TIN SẢN PHẨM
Chi tiết và thông số kỹ thuật

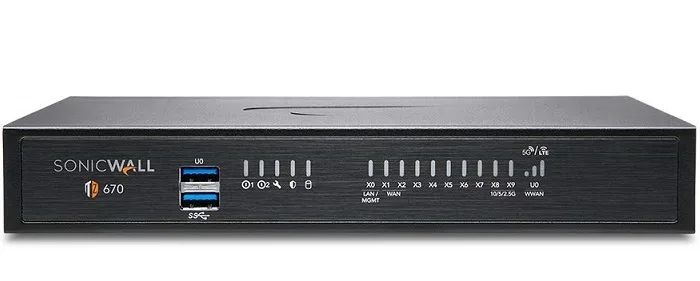

Thiết bị tường lửa SonicWall TZ670 (02-SSC-2837)
- Interface: 8x1GbE, 2x10GbE, 2 USB 3.0, 1 Console
- Firewall Inspection Throughput: 5.00 Gbps
- Application Inspection Throughput: 3.0 Gbps
- IPS Throughput: 3.0 Gbps
- Threat Prevention Throughput: 2.50 Gbps
- VPN Throughput: 2.1 Gbps
- Includes 24×7 telephone, email and Web-based Support, Software and firmware updates, Advance Exchange hardware replacement, access to electronic Support tools and moderated discussion groups.
Thông số kỹ thuật
| Model | TZ670 (02-SSC-2837) |
| Operating system | SonicOS 7.0 |
| Interfaces | 8x1GbE, 2x10GbE, 2 USB 3.0, 1 Console |
| Expansion | Storage Expansion Slot (Up to 256GB, with 32 GB included) |
| Management | Network Security Manager, CLI, SSH, Web UI, GMS, REST APIs |
| Single Sign-On (SSO) Users | 2500 |
| VLAN interfaces | 256 |
| Access points supported (maximum) | 32 |
| FIREWALL/VPN PERFORMANCE | |
| Firewall inspection throughput | 5.00 Gbps |
| Threat Prevention throughput | 2.50 Gbps |
| Application inspection throughput | 3.0 Gbps |
| IPS throughput | 3.0 Gbps |
| Anti-malware inspection throughput | 2.50 Gbps |
| TLS/SSL inspection and decryption throughput (DPI SSL) | 800 Mbps |
| IPSec VPN throughput | 2.10 Gbps |
| Connections per second | 25000 |
| Maximum connections (SPI) | 1500000 |
| Maximum connections (DPI) | 500000 |
| Maximum connections (DPI SSL) | 30000 |
| VPN | |
| Site-to-site VPN tunnels | 250 |
| IPSec VPN clients (maximum) | 10 (500) |
| SSL VPN licenses (maximum) | 2 (200) |
| Encryption/authentication | DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography |
| Key exchange | Diffie Hellman Groups 1, 2, 5, 14v |
| Route-based VPN | RIP, OSPF, BGP |
| Route-based VPN | Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP |
| VPN features | Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN |
| Global VPN client platforms supported | Microsoft® Windows 10 |
| NetExtender | Microsoft® Windows 10, Linux |
| Mobile Connect | Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10 |
| SECURITY SERVICES | |
| Deep Packet Inspection services | Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL |
| Content Filtering Service (CFS) | HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists |
| Comprehensive Anti-Spam Service | Yes |
| Application Visualization | Yes |
| Application Control | Yes |
| Capture Advanced Threat Protection | Yes |
| DNS Security | Yes |
| NETWORKING | |
| IP address assignment | Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay |
| NAT modes | 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode |
| Routing protocols | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
| QoS | Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) |
| Authentication | LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) |
| Local user database | 250 |
| VoIP | Full H.323v1-5, SIP |
| Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Certifications | FIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS) |
| HARDWARE | |
| Form factor | Desktop |
| Power supply | 60W external |
| Maximum power consumption (W) | 13.1 |
| Input power | 100-240 VAC, 50-60 Hz |
| Total heat dissipation | 55.1 BTU |
| Dimensions | 3.5 x 15 x 22.5 (cm) |
| Weight | 0.97 kg / 2.14 lbs |
| Environment (Operating/Storage) | 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C) |
| Humidity | 5-95% non-condensing |
– Bảo hành: 12 tháng.
