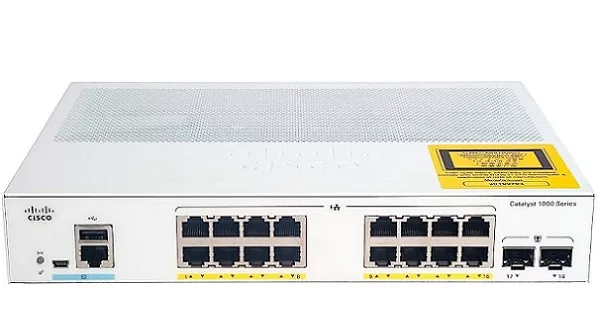

16-port 10/100/1000 Ethernet + 2-port 1G SFP Uplinks Switch Cisco C1000-16P-2G-L

Name: 16-port 10/100/1000 Ethernet + 2-port 1G SFP Uplinks Switch Cisco C1000-16P-2G-L
SKU: 18333
Price: 14790000 VND
Availability: InStock

14.790.000 ₫

Danh mục: Thiết bị mạng, Cisco Thẻ: 16-port 10/100/1000 Ethernet + 2-port 1G SFP Uplinks Switch Cisco C1000-16P-2G-L Cisco C1000-16P-2G-L Thiết bị mạng Thiết bị mạng Cisco

Mô tả

16-port 10/100/1000 Ethernet + 2-port 1G SFP Uplinks Switch Cisco C1000-16P-2G-L

Cisco C1000-16P-2G-L is one of the Cisco Catalyst 1000 Series Switches. Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices.
Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Support 16 x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2 x 1G SFP uplinks.
CPU: ARM v7 800MHz.
DRAM: 512MB.
Flash memory: 256MB.
Dimensions (WxDxH): 10.56 x 11.69 x 1.73 inch.
Bảo hành: 12 tháng.

Thông số kỹ thuật

Model	C1000-16P-2G-L
General
Gigabit Ethernet ports	16 10/100/1000 RJ45 PoE+
Uplink interfaces	2 SFP
PoE+power budget	120W
Fanless	Y
Dimensions (WxDxH)	10.56 x 11.69 x 1.73 inch
Weight	2.38 kg
Console ports
RJ-45 Ethernet	1
USB mini-B	1
USB-A port for storage and Bluetooth console	1
Memory and processor
CPU	ARM v7 800MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	18 Gbps
Switching bandwidth	36 Gbps
Forwarding rate (64‑byte L3 packets)	26.78 Mpps
MAC addresses	16000
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	600
IPv6 security ACEs	600
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Dying Gasp	Yes
MTBF in hours (data)	2,165,105
MTBF in hours (PoE)	706,983
Safety and compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
Safety	GB 4943.1-2011
EMC: Emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	USGv6 and IPv6 Ready Logo
Connectors and interfaces
Indicator LEDs	Per-port status: link integrity, disabled, activity
Indicator LEDs	System status: System
Console cables	CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Console cables	CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Power	Models have external power supply
