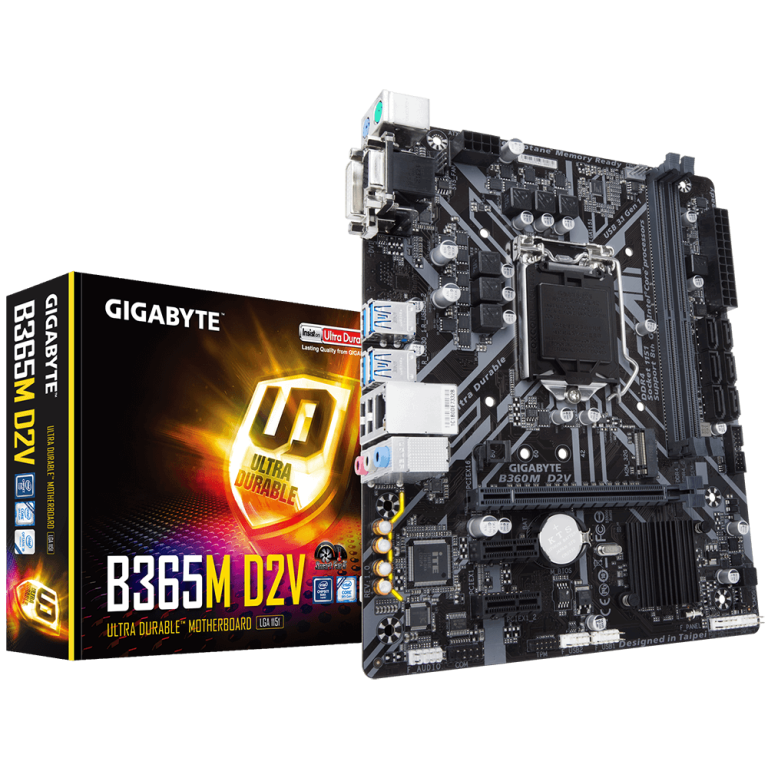

Mainboard Gigabyte B365M-D2V

Ram hỗ trợ: 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Kiểu Sockets Supported: Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Chipset: Intel® B365 Express Chipset

Mã: B365M-D2V Danh mục: Mainboard Thẻ: Linh kiện Mainboard

Mô tả

Thông số sản phẩm

Bảo hành	36 tháng
Ram hỗ trợ	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules
Kiểu Sockets Supported	Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU
Chipset	Intel® B365 Express Chipset
khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
LAN – WiF	Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	Realtek® ALC887 codec High Definition Audio
Operating System Support	Support for Windows 10 64-bit
Cổng I / O phía sau	1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper
Chuẩn thiết kế ATX	Micro ATX Form Factor; 22.6cm x 18.5cm
Cổng lưu trữ / kết nối	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Intel® Optane™ Memory Ready
Đồ họa	Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
