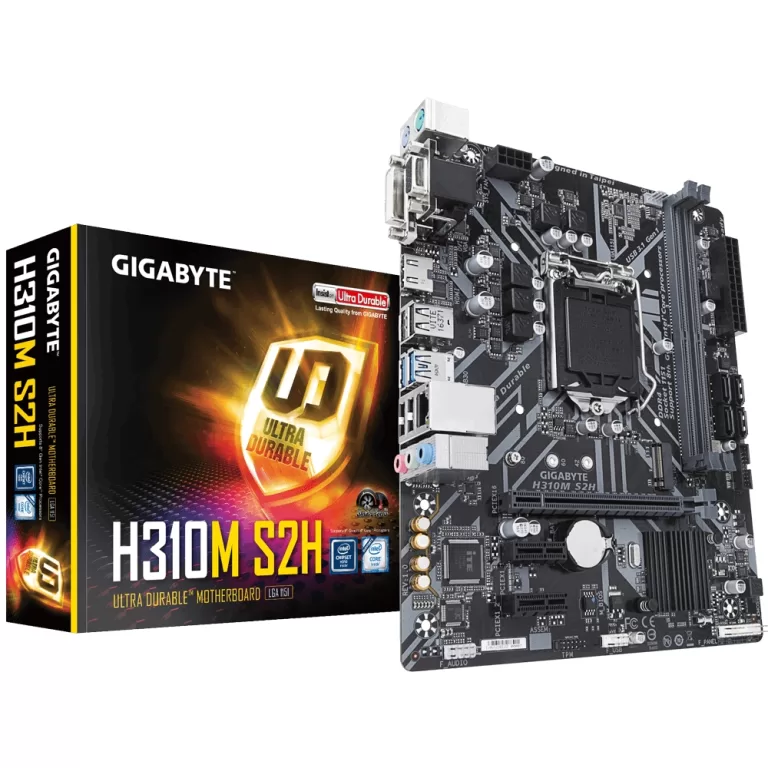

Mainboard Gigabyte H310M-S2H

Ram hỗ trợ: 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Kiểu Sockets Supported: LGA1151
Chipset: Intel® H310 Express Chipset

Mã: H310M-S2H Danh mục: Mainboard Thẻ: Linh kiện Mainboard

Mô tả

Thông số sản phẩm

Bảo hành	36 tháng
Ram hỗ trợ	2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Kiểu Sockets Supported	LGA1151
Chipset	Intel® H310 Express Chipset
khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
LAN – WiF	Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Operating System Support	Support for Windows 10 64-bit
Cổng I / O phía sau	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Chuẩn thiết kế ATX	Micro ATX Form Factor; 22.6cm x 18.5cm
Cổng lưu trữ / kết nối	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connectors
Đồ họa	1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
