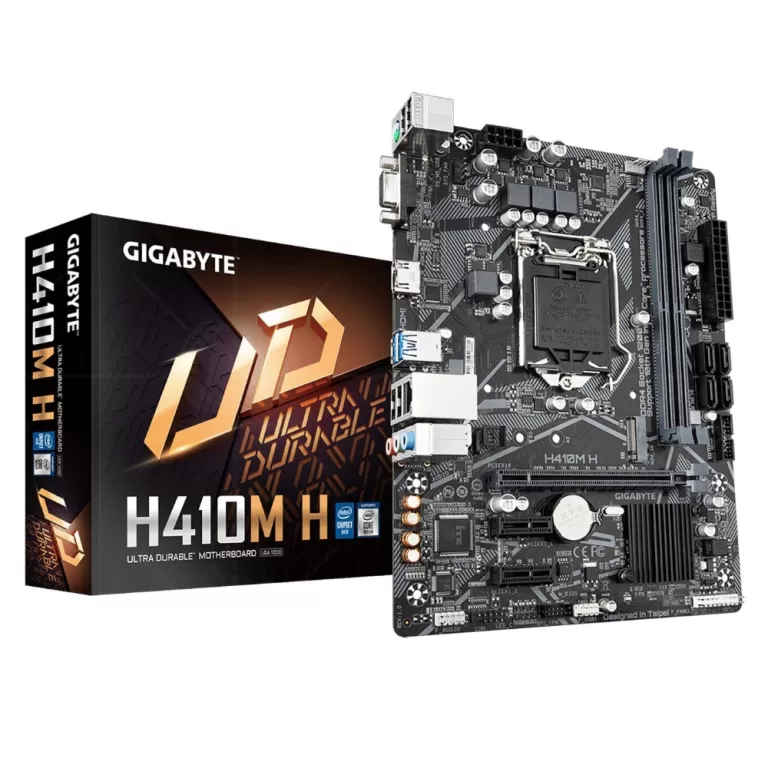

Mainboard Gigabyte H410M H

Ram hỗ trợ: 2 x DDR4 DIMM DDR4 2933/2666/2400/2133 MHz max 64GB
Kiểu Sockets Supported: Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron
Chipset: Intel® H410 Express Chipset

Mã: H410M H Danh mục: Mainboard Thẻ: Linh kiện Mainboard

Mô tả

Thông số sản phẩm

Bảo hành	36 tháng
Ram hỗ trợ	2 x DDR4 DIMM DDR4 2933/2666/2400/2133 MHz max 64GB
Kiểu Sockets Supported	Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron
Chipset	Intel® H410 Express Chipset
khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 2x PCIe 3.0 x1
LAN – WiF	Realtek® GbE LAN chip (1000/100 Mbit)
Âm thanh	Realtek® ALC887 codec
Operating System Support	Support for Windows 10 64-bit
Cổng I / O phía sau	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Chuẩn thiết kế ATX	Micro ATX Form Factor; 22.6cm x 18.5cm
Cổng lưu trữ / kết nối	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4x SATA 6Gb/s 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Đồ họa	1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz

Rate this product

Sản phẩm tương tự

Mainboard Gigabyte B760M D2H DDR4
- Kích thước: 24.4cm x 22.5cm
- Kiểu Sockets Supported: LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  L3 cache varies with CPU
  (Please refer “CPU Support List” for more information.)
- Chipset: Intel® B760 Express Chipset
- Chuẩn RAM: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer “Memory Support List” for more information.)
- Thông số chung: Điều khiển I/O: iTE® I/O Controller Chip
2.744.000 ₫
Thêm vào giỏ hàng
Mainboard Gigabyte B760M DS3H DDR4
- Chipset: Intel® B760 Express Chipset
- Bộ xử lý: LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  L3 cache varies with CPU
  (Please refer “CPU Support List” for more information.)
- Chuẩn RAM: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer “Memory Support List” for more information.)
- Đồ họa bộ xử lý: Integrated Graphics Processor-Intel® HD Graphics support:
  1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.0 version and HDCP 2.3.
  1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3
  1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  * Support for DisplayPort 1.2 version.
  (Graphics specifications may vary depending on CPU support.)

  Support for up to quad-display at the same time
3.097.000 ₫
Thêm vào giỏ hàng
Mainboard Gigabyte B460M AORUS PRO
- Ram hỗ trợ: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
- Kiểu Sockets Supported: Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron
- Chipset: Intel® B460 Express Chipset
- Chuẩn RAM: supporting up to 128GB (32 GB single DIMM capacity)
Đọc tiếp
Mainboard Gigabyte H510M S2H V3
- Kích thước: Micro ATX Form Factor; 22.6cm x 18.5cm
- Ram hỗ trợ: 11th Generation Intel® Core™ i9/i7/i5 processors:
  Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  10th Generation Intel® Core™ i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz memory modules
  10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer “Memory Support List” for more information.)
- Kiểu Sockets Supported: LGA1200 package:
  11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
  L3 cache varies with CPU
  (Please refer to “CPU Support List” for more information.)
- Chipset: Intel® H470 Express Chipset
- Thông số chung: * BIOS:
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- MainBoard: Gigabyte
1.837.000 ₫
Thêm vào giỏ hàng
Mainboard Asus PRIME H610M-K D4-CSM
- Kích thước: 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
- Ram hỗ trợ: 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture

  Supports Intel® Extreme Memory Profile (XMP)

  * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
- Kiểu Sockets Supported: Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Chipset: Intel® H610 Chipset
- Đồ họa bộ xử lý: 1 x D-Sub port
  1 x HDMI® port**

  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

  ** Supports 4K@60Hz as specified in HDMI 2.1.
- Thông số chung: BIOS : 128 Mb Flash ROM, UEFI AMI BIOS
- Ổ Cứng: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  Intel® H610 Chipset
  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports
  * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.
1.971.000 ₫
Thêm vào giỏ hàng
Mainboard Gigabyte H410M S2H
- Ram hỗ trợ: 2 x DDR4 DIMM sockets of system memory
  Dual channel memory architecture
- Kiểu Sockets Supported: Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
- Chipset: Intel® H410 Express Chipset
- Chuẩn RAM: supporting up to 64 GB (32 GB single DIMM capacity)
Đọc tiếp
Mainboard Asus TUF GAMING B760M-PLUS WIFI D4
- Kích thước: Yếu tố hình thức mATX
  9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- Ram hỗ trợ: 4 khe cắm DIMM, tối đa 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Bộ nhớ Dual Channel Architecture
  Hỗ trợ Intel® Extreme Memory Profile (XMP)
  OptiMem II
  * Loại bộ nhớ được hỗ trợ, tốc độ dữ liệu và số mô-đun DRAM khác nhau tùy thuộc vào CPU và cấu hình bộ nhớ, để biết thêm thông tin vui lòng tham khảo Phần hỗ trợ CPU / Bộ nhớ dưới Tab Hỗ trợ hoặc truy cập https://www.asus.com/support/
- Kiểu Sockets Supported: Hỗ trợ socket LGA1700 cho 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold và Celeron® Processors*
  Hỗ trợ công nghệ Intel® Turbo Boost Technology 2.0 và Intel® Turbo Boost Max Technology 3.0**
  * Hãy tham khảo danh sách hỗ trợ CPU tại www.asus.com.
  ** Hỗ trợ công nghệ Intel® Turbo Boost Max 3.0 phụ thuộc vào loại CPU.
- Chipset: Chipset Intel® B760
Đọc tiếp
Mainboard Gigabyte B365M-DS3H
- Ram hỗ trợ: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  Dual channel memory architecture
  Support for DDR4 2666/2400/2133 MHz memory modules
- Chipset: Intel® B360 Express Chipset
Đọc tiếp
Mainboard Gigabyte GA-H110M-H
- Kích thước: 22.6cm x 17.4cm
- Kiểu Sockets Supported: Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
  L3 cache varies with CPU
  (Please refer “CPU Support List” for more information.)
- Chipset: Intel® H110 Express Chipse
- Chuẩn RAM: 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  Dual channel memory architecture
  Support for DDR4 2400/2133 MHz memory modules
  Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  (Please refer “Memory Support List” for more information.)
- Thông số chung: Điều khiển I/O : iTE® I/O Controller Chip
1.568.000 ₫
Thêm vào giỏ hàng
