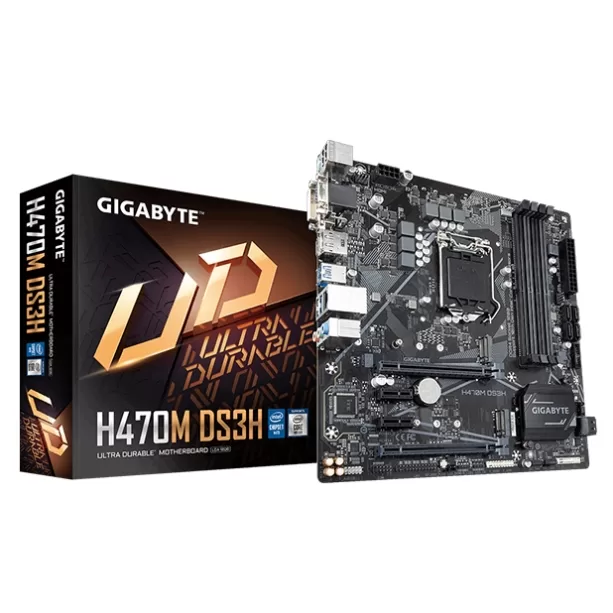

Mainboard Gigabyte H470M DS3H

Ram hỗ trợ: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Kiểu Sockets Supported: Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron
Chipset: Intel® H470 Express Chipset
Chuẩn RAM: supporting up to 128GB (32 GB single DIMM capacity)

Mã: H470M DS3H Danh mục: Mainboard Thẻ: Linh kiện Mainboard

Mô tả

Thông số sản phẩm

Bảo hành	36 tháng
Ram hỗ trợ	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture
Kiểu Sockets Supported	Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron
Chipset	Intel® H470 Express Chipset
khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots
LAN – WiF	Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Âm thanh	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Operating System Support	Support for Windows 10 64-bit
Cổng I / O phía sau	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x DisplayPort 1 x USB Type-C™ port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Chuẩn thiết kế ATX	Micro ATX Form Factor; 24.4cm x 24.4cm
Cổng lưu trữ / kết nối	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Chuẩn RAM	supporting up to 128GB (32 GB single DIMM capacity)
Đồ họa	1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
